Ground Distribution Wiring Schematics: G106

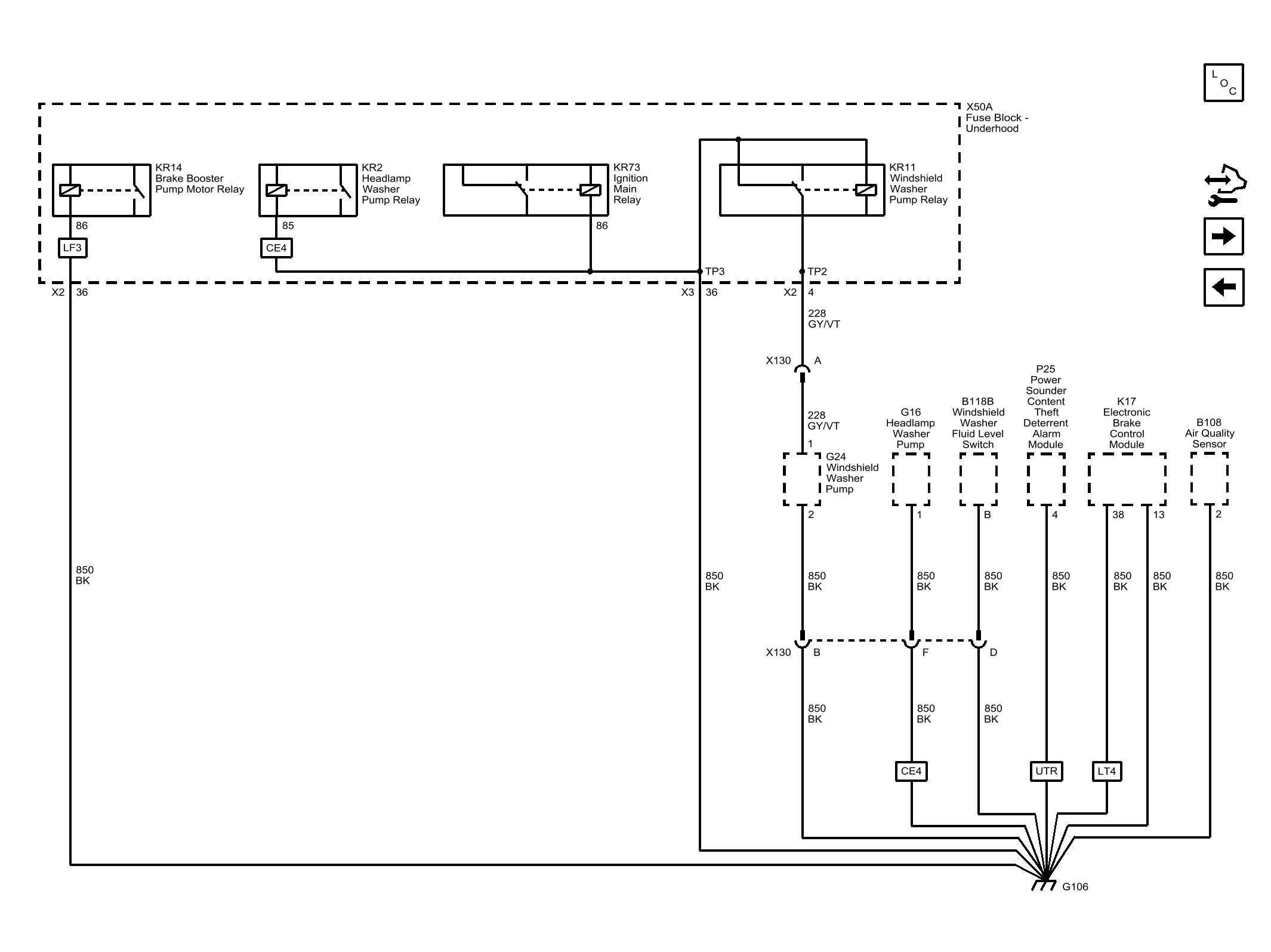

Fig 1: G106

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
850	Ground
850_BK	850 BK
CAV_13	13
850_BK	850 BK
CAV_2	2
CAV_1	1
CAV_B	B
850_BK	850 BK
CAV_2	2
850_BK	850 BK
CAV_4	4
850_BK	850 BK
850_BK	850 BK
850_BK	850 BK
228	Windshield Washer Pump Control
CAV_1	1
228_GY/VT	228 GY/VT
228_GY/VT	228 GY/VT
CAV_4	4
CONN_X2	X2
CAV_A	A
850_BK	850 BK
CAV_36	36
CONN_X3	X3
CAV_86	86
CAV_85	85
CAV_86	86
850_BK	850 BK
850_BK	850 BK
CAV_TP2	TP2
CAV_TP3	TP3
CE4	WASHER-HEADLAMP, HIGH PRESSURE (Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Russia Group (MBR), Europe Group (MBM))
CE4	WASHER-HEADLAMP, HIGH PRESSURE (Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Russia Group (MBR), Europe Group (MBM))
UTR	ALARM, HORN-CONTENT THEFT DETERENT, SELF POWERED (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Japan (MAS), Korea (MAW), Israel (MBI), Russia Group (MBR), Europe Group (MBM))
CAV_38	38
LT4	ENGINE-GAS, 8 CYL, 6.2L, DI, SC, AFM, VVT, ALUM, GMNA (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
850_BK	850 BK
850_BK	850 BK
CAV_36	36
CONN_X2	X2
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM (U.S.A., PR and USVI (MAH), Canada (MBC))
X130	X130
CAV_B	B
CAV_F	F
CAV_D	D
G106	G106
X130	X130
X130	X130
X50A	X50A Fuse Block - Underhood
KR11	KR11 Windshield Washer Pump Relay
G16	G16 Headlamp Washer Pump (CE4)
B118B	B118B Windshield Washer Fluid Level Switch
P25	P25 Power Sounder Content Theft Deterrent Alarm Module (UTR)
G24	G24 Windshield Washer Pump
B108	B108 Air Quality Sensor
KR73	KR73 Ignition Main Relay
KR2	KR2 Headlamp Washer Pump Relay
KR14	KR14 Brake Booster Pump Motor Relay
K17	K17 Electronic Brake Control Module
