Evaporative Emission Canister Purge Solenoid Valve Replacement

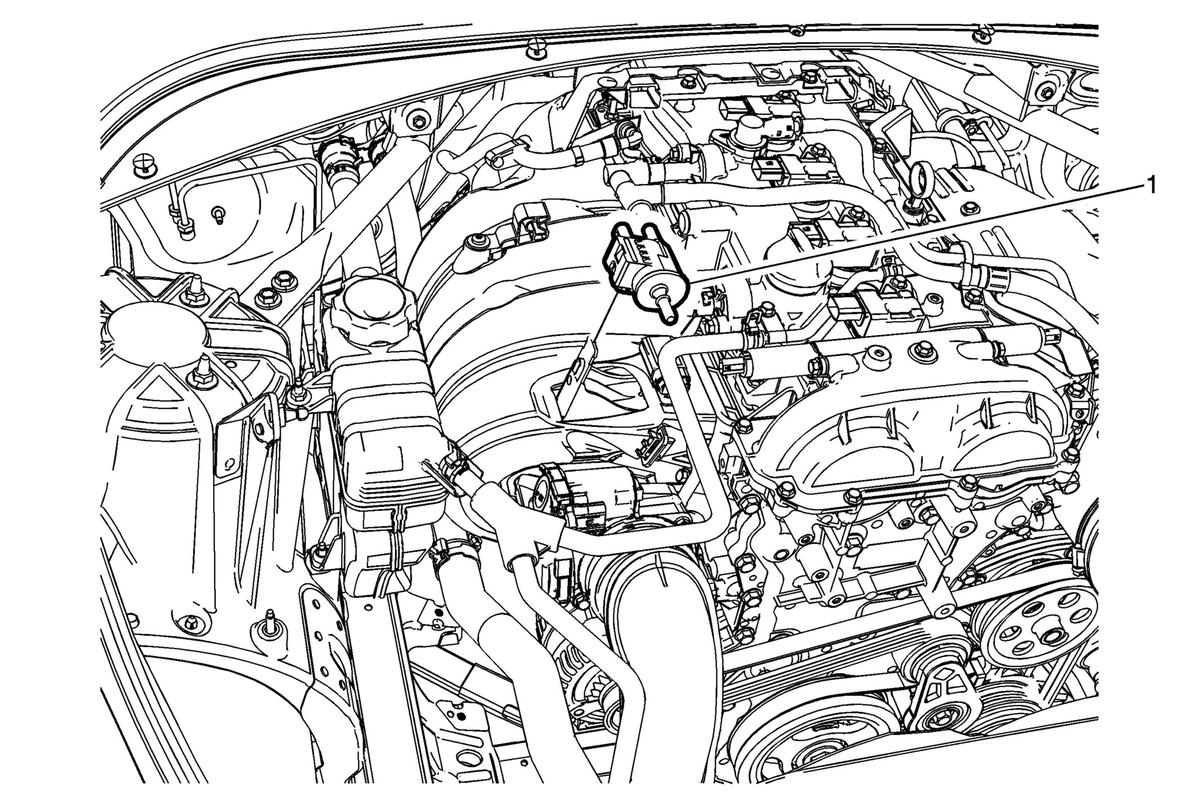

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (LTG)
GM2869960Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Refer to Safety Glasses Warning .
Preliminary Procedure Disconnect the evaporative emission lines. Refer to Plastic Collar Quick Connect Fitting Service .
1 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Disconnect the evaporative emission canister purge solenoid valve electrical connector.
  2. Release the retaining tab.
