Turbocharger Wastegate Regulator Solenoid Valve Replacement

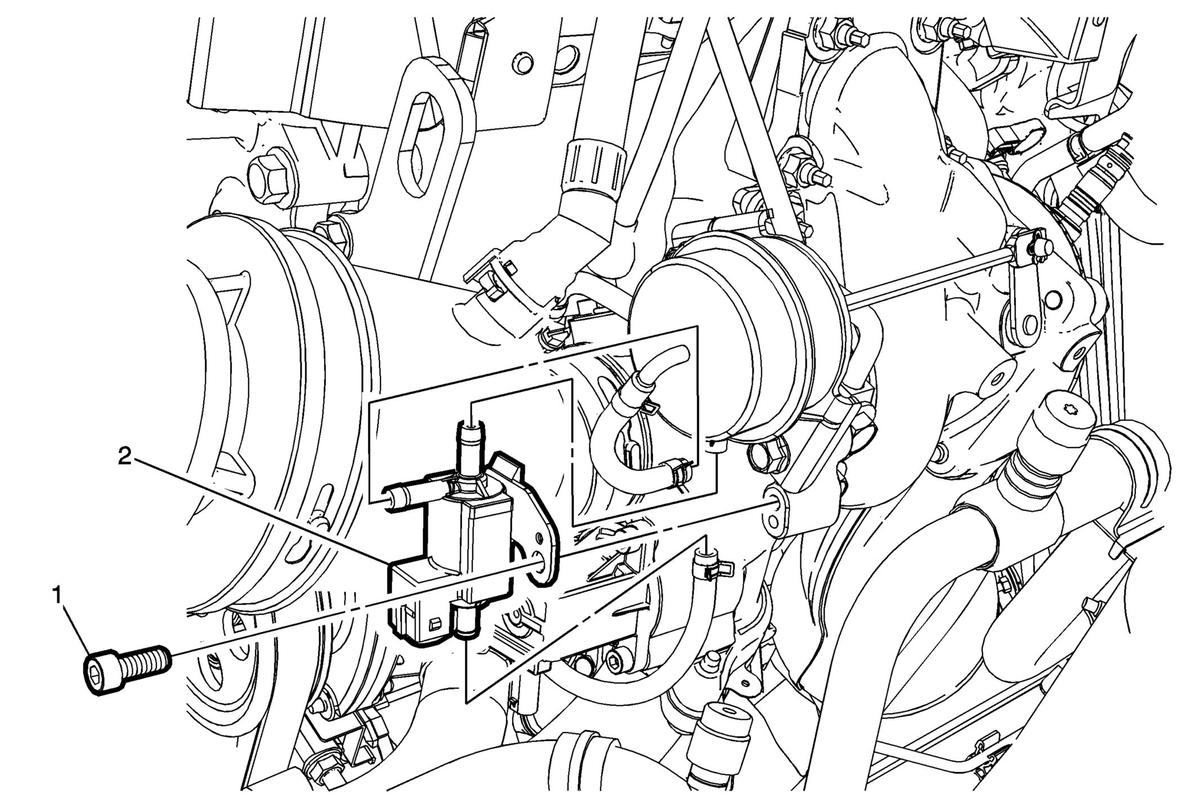

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve
GM2871010Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Turbocharger Wastegate Regulator Solenoid Valve Fastener
CAUTION: Refer to Fastener Caution .

Tighten
7.8 N.m (69 lb in)
2 Turbocharger Wastegate Regulator Solenoid Valve

Procedure

  1. Disconnect the turbocharger bypass valve solenoid harness connector.
  2. Disconnect the vacuum lines from the turbocharger wastegate regulator solenoid valve.
