Fuel Tank Vent Valve Hose Replacement (At Tank)

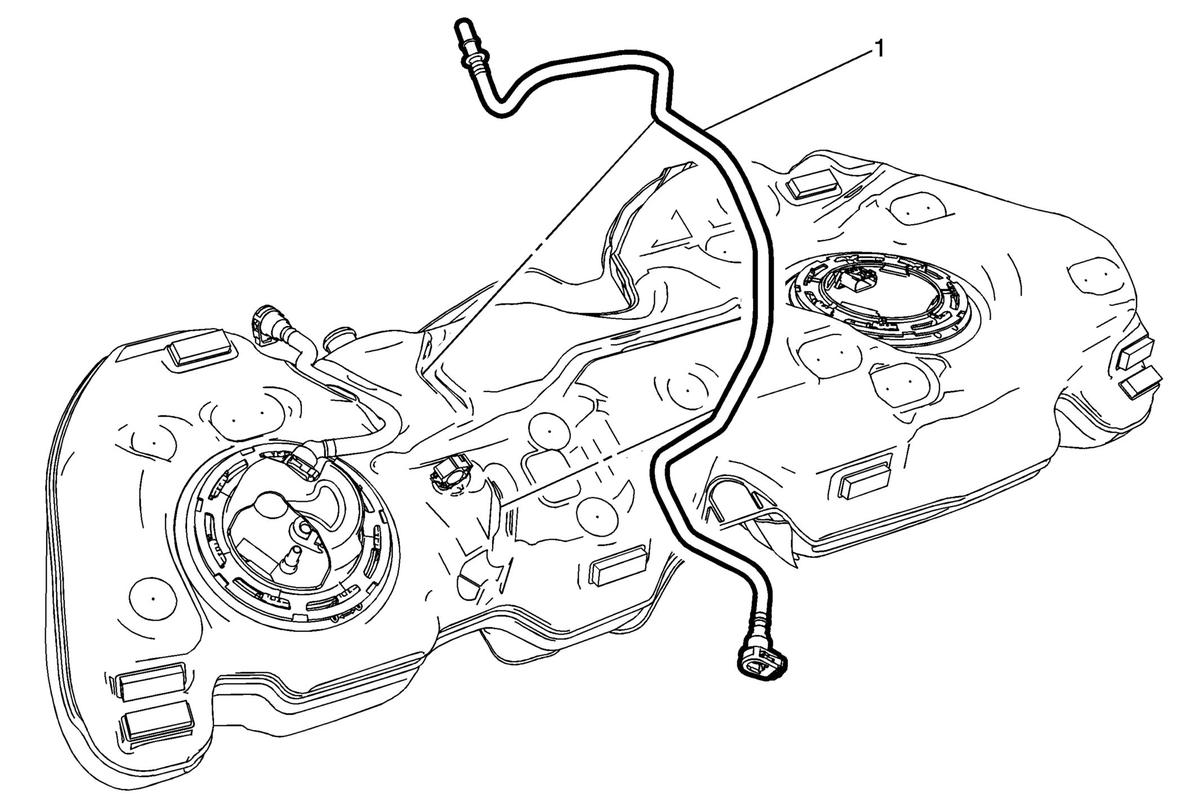

Fig 1: Fuel Tank Vent Valve Hose (At Tank)
GM2826149Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Refer to Safety Glasses Warning .
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Vent Valve Hose
Procedure
Remove the fuel tank vent valve hose from the fuel tank.
