Installation Procedure

  1. Install the evaporative emission pipe (1) to the vehicle.

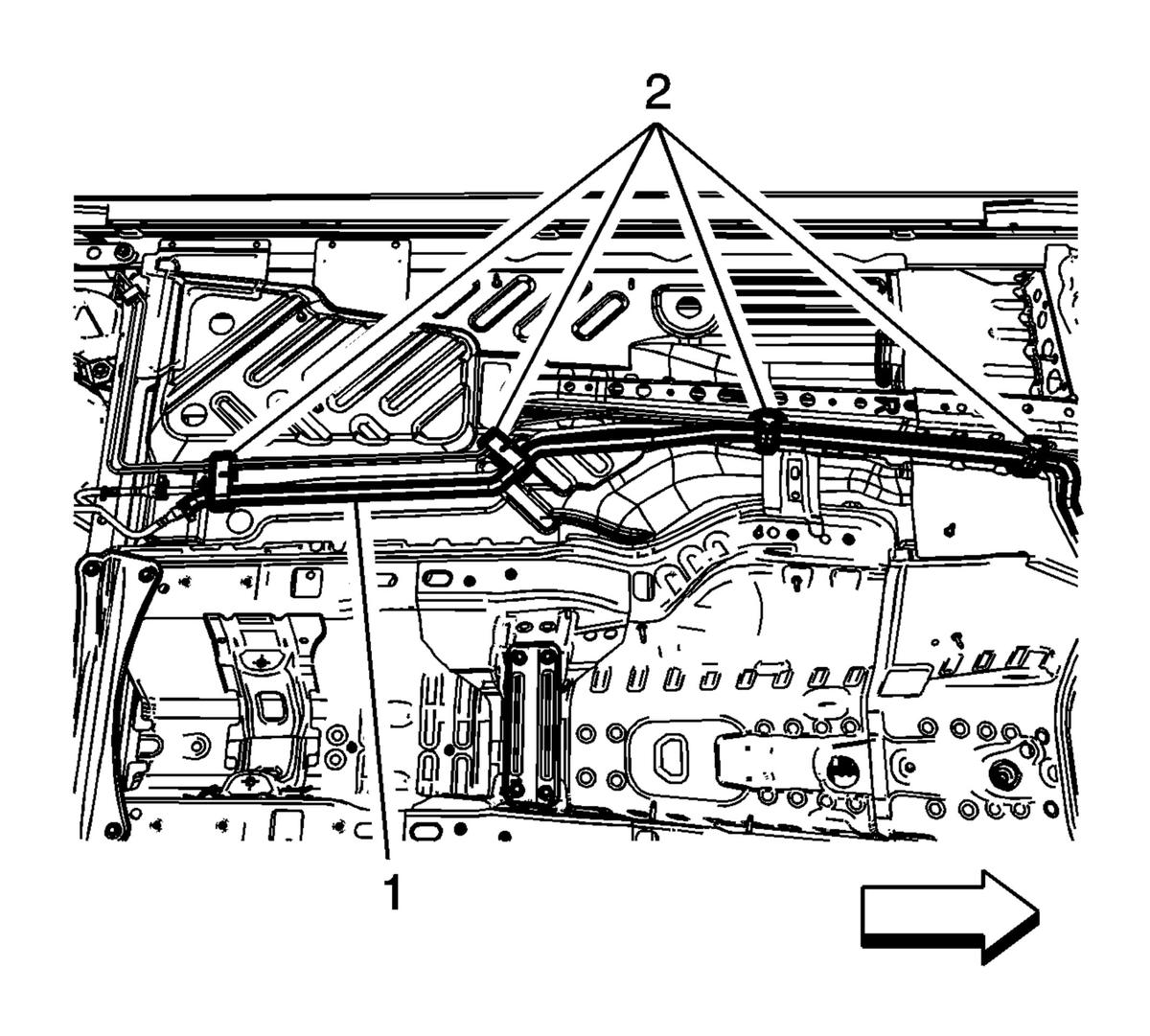

    Fig 1: Evaporative Emission Pipe
    GM2815714Courtesy of GENERAL MOTORS COMPANY
  2. Connect the evaporative emission pipe (1) and install to the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right) .
  4. Install the underbody front air deflector right side. Refer to Underbody Front Air Deflector Replacement - Right Side .
  5. Lower the vehicle.
  6. Install the evaporative emission pipe (1) to the evaporative emission canister purge solenoid valve and retainers. Refer to Plastic Collar Quick Connect Fitting Service .

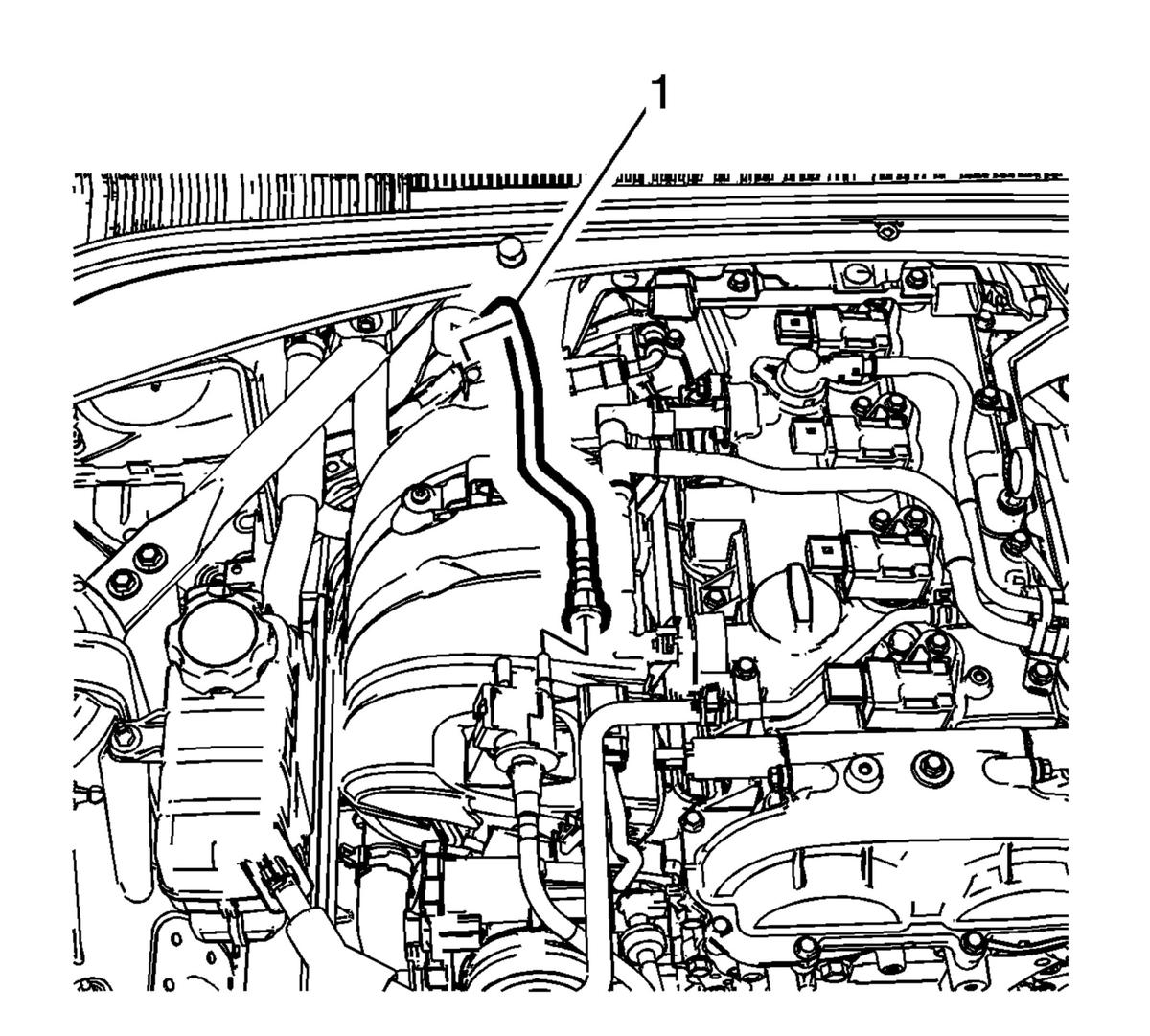

    Fig 2: Evaporative Emission Pipe And Canister Purge Solenoid Valve
    GM2869963Courtesy of GENERAL MOTORS COMPANY
  7. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
