Charge Air Cooler Radiator Replacement

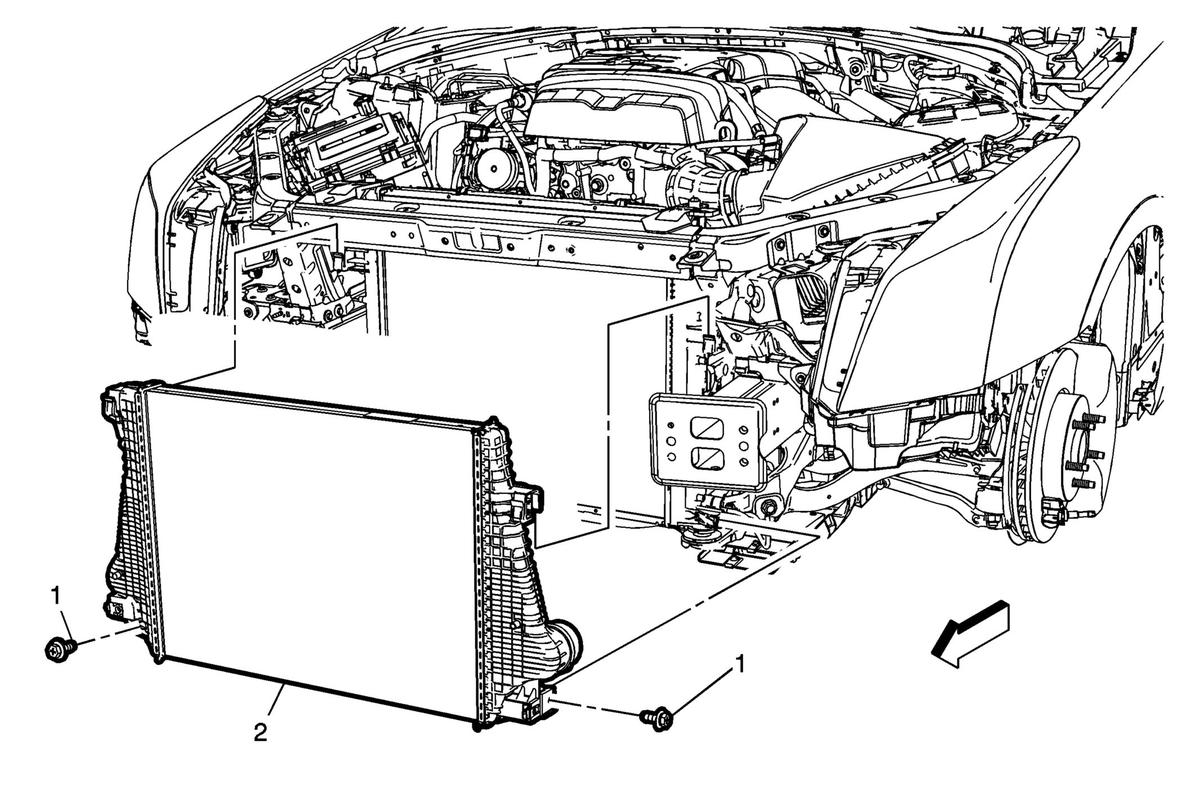

Fig 1: Charge Air Cooler Radiator (LTG)

GM2869948

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LTG without V03) .
Remove the charge air cooler inlet air tube. Refer to Charge Air Cooler Inlet Air Tube Replacement .
Remove the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .

1

Charge Air Cooler Radiator Bolts (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

2

Charge Air Cooler Radiator
