Preliminary Procedures
- Remove the fuel tank filler door. Refer to Fuel Tank Filler Door Replacement .
- Loosen the lower filler pipe bolt and remove the upper filler pipe bolt. Refer to Fuel Tank Filler Pipe Replacement
(2.0L), Fuel Tank Filler Pipe Replacement
(3.6L) and/or Fuel Tank Filler Pipe Replacement
(6.2L).
|

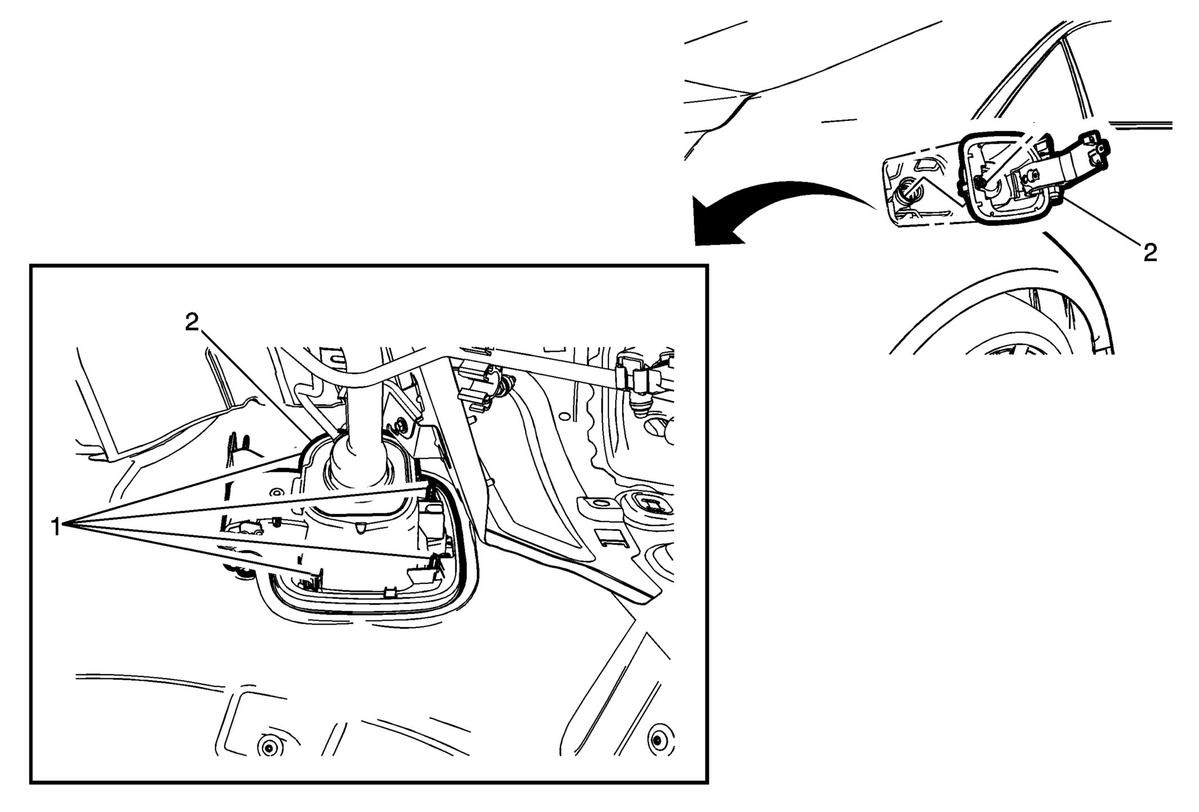

| 1 |
Fuel Tank Filler Pipe Housing Retainer (Qty: 4) Procedure
- Using a flat-bladed tool, release the fuel tank filler pipe housing retainers through the wheelhouse opening.
- Disconnect the electrical connector if equipped with a locking actuator.
- Transfer the actuator if equipped.
|
| 2 |
Fuel Tank Filler Pipe Housing Procedure
- Position the fuel tank filler pipe housing to the panel and the fuel filler pipe.
- Press the fuel tank filler pipe housing to the panel until fully seated.
- Ensure the fuel tank filler pipe housing seal is fully seated to the filler pipe.
- Connect electrical connector to the locking actuator if equipped.
|
