Front End Sheet Metal Cross Brace Replacement (CTS-V)

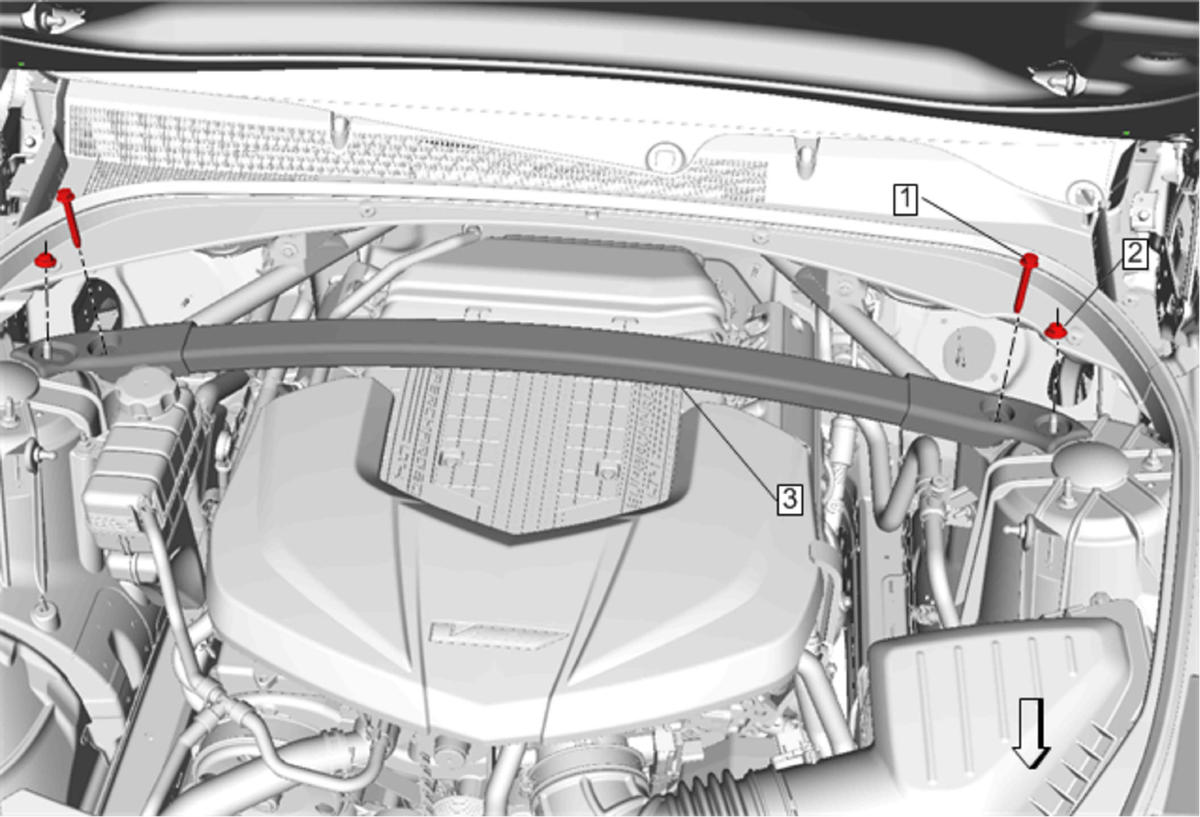

Fig 1: Front End Sheet Metal Cross Brace (CTS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front End Sheet Metal Cross Brace Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Front Suspension Strut Upper Mounting Nut [2x] Tighten  22 N.m (16 lb ft)
3	Front End Sheet Metal Cross Brace
