Secondary Air Injection Pipe Replacement (LFX)

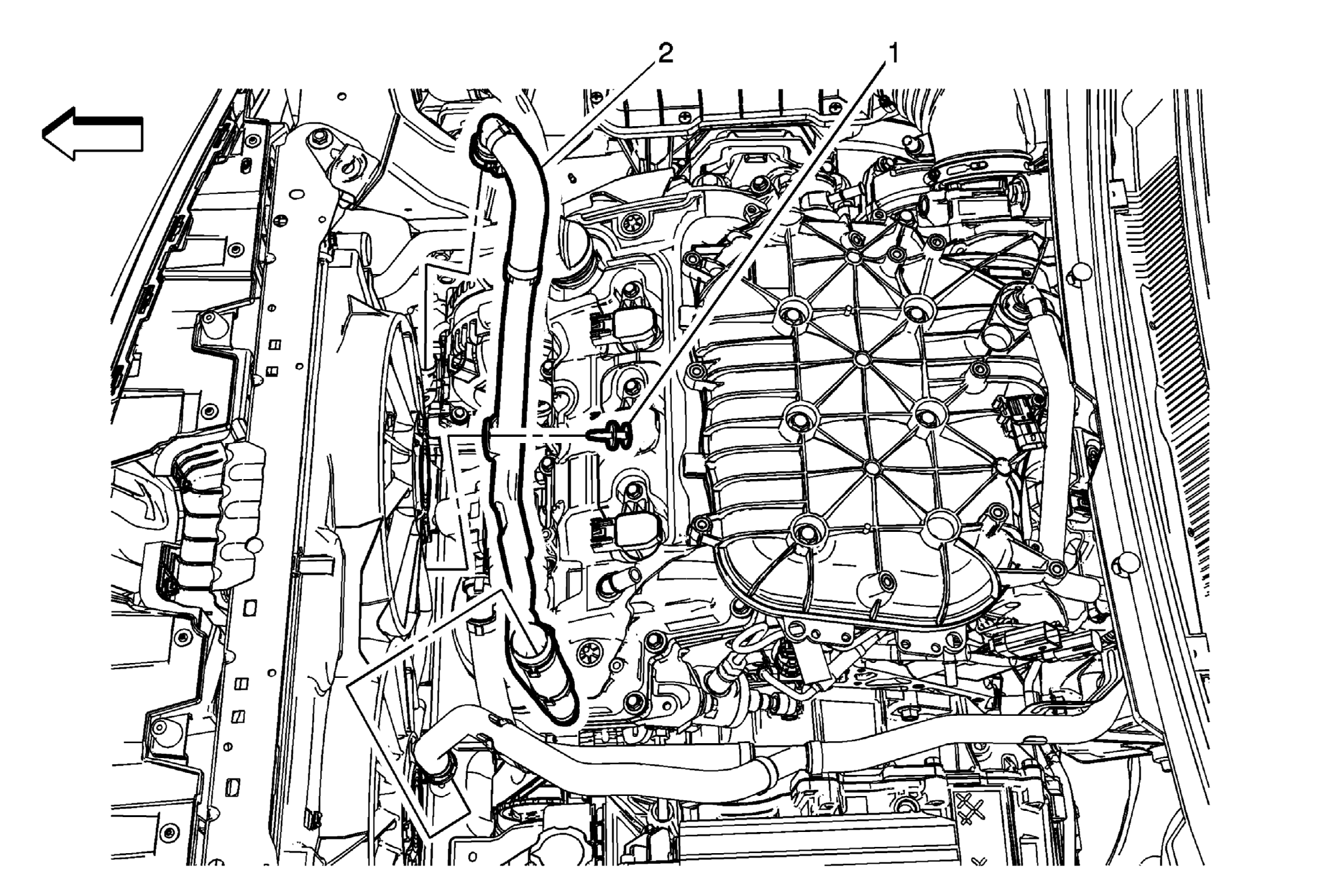

Fig 1: Secondary Air Injection Pipe (LFX)
GM3287268Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1 Secondary Air Injection Pipe Retainer
2 Secondary Air Injection Pipe
Procedure
Disconnect the quick connect fittings by squeezing both sides.
