Air Cleaner Outlet Front Duct Replacement (LF3)

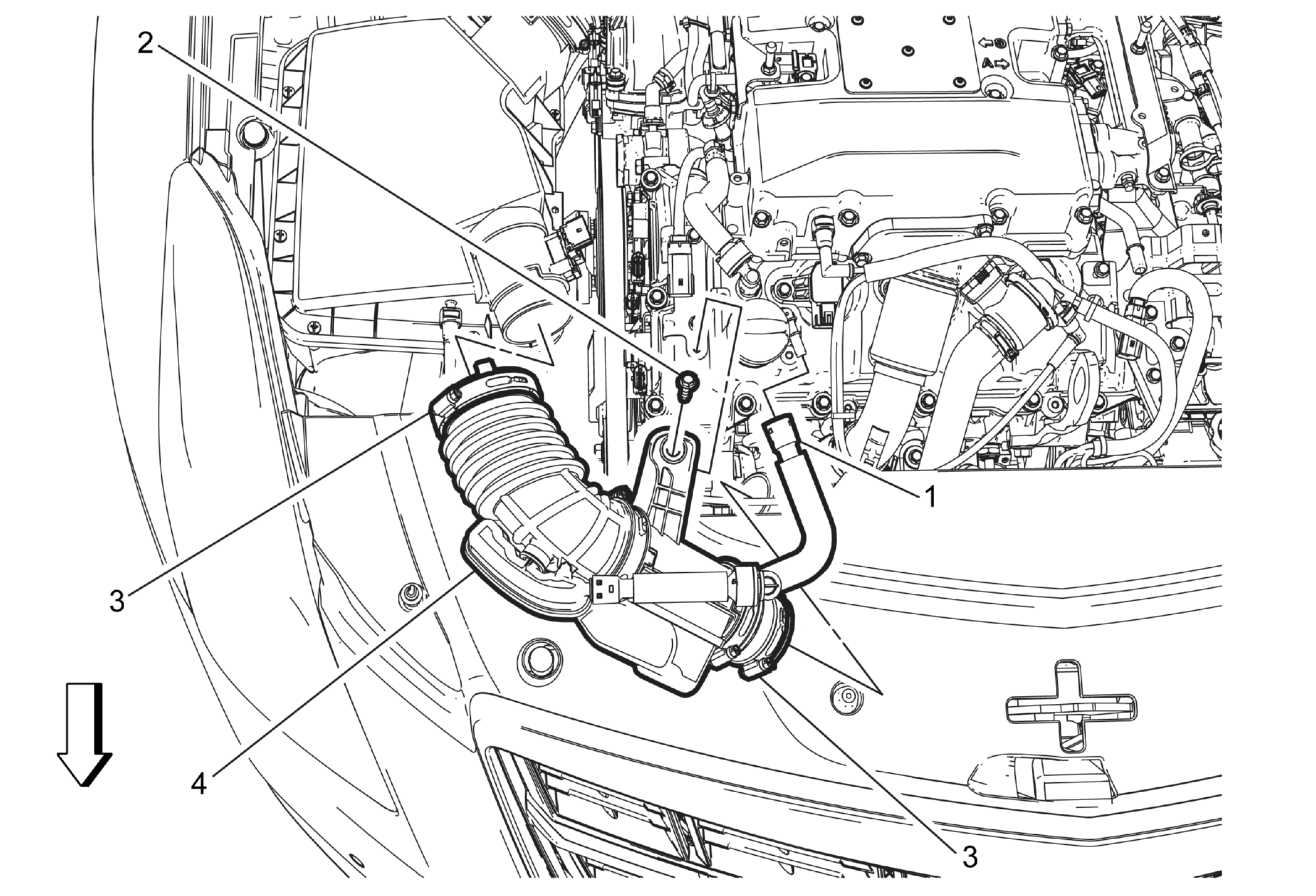

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) . |
|
| 1 | PCV Tube Quick Connect Fitting
NOTE:
Disconnect only from engine side. |
| 2 | Air Cleaner Outlet Front Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Air Cleaner Outlet Front Duct Clamps (Qty: 2)
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. |
| 4 | Air Cleaner Outlet Front Duct |
