Charge Air Cooler Coolant Hose Replacement - Pump Inlet (LF3)

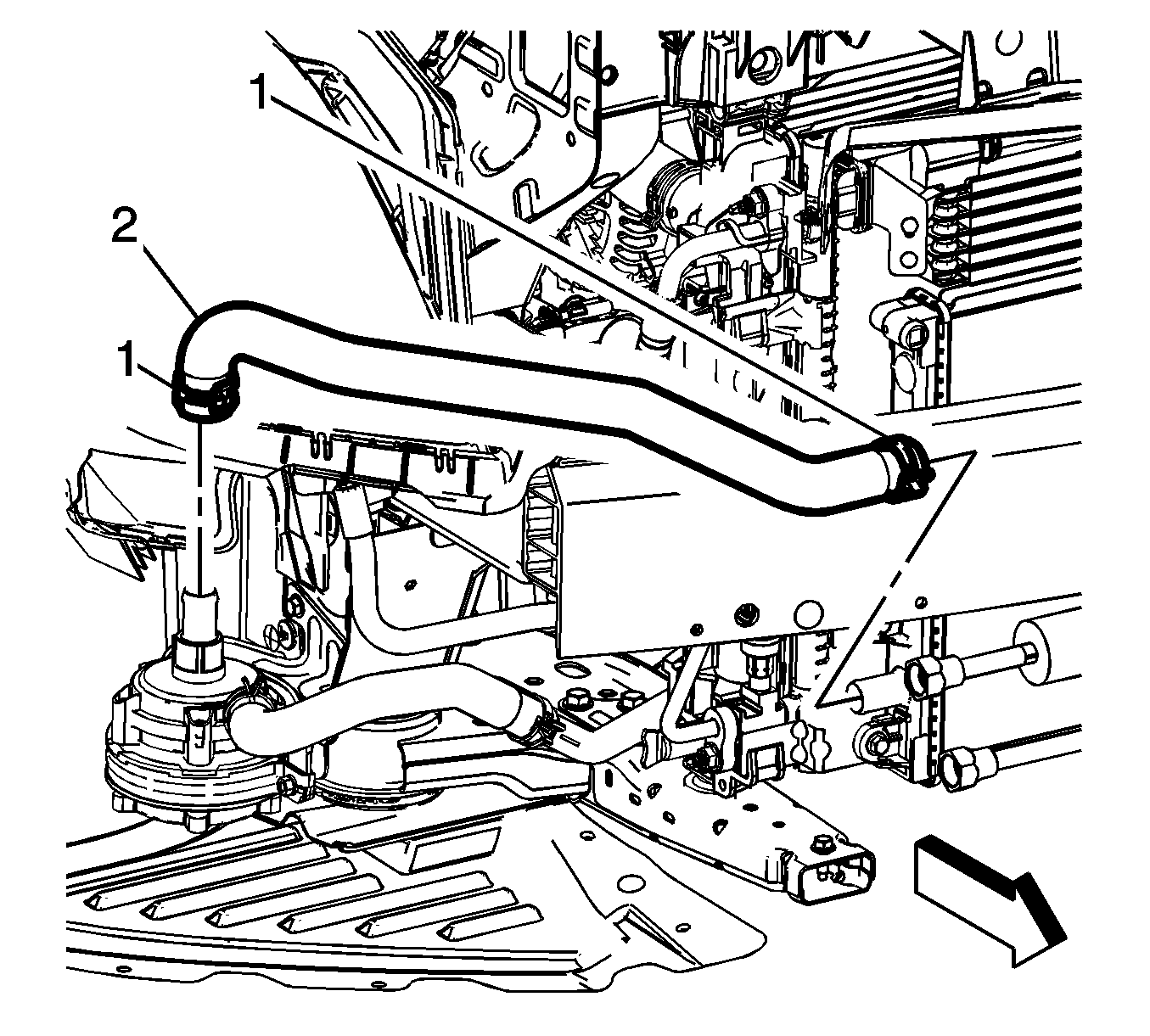

Fig 1: Charge Air Cooler Coolant Hose - Pump Inlet (LF3)
GM3289776Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Drain the charge air cooling system. Refer to Charge Air Cooling System Draining and Filling (Static LF3) Charge Air Cooling System Draining and Filling (Vacuum Fill LF3) .
1 Charge Air Cooler Coolant Hose- Pump Inlet Clamp (Qty: 2)
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Charge Air Cooler Coolant Hose- Pump Inlet

Procedure

  1. Fill the charge air cooling system.
  2. Check the charge air cooling system for leaks.
