Power, Ground, Serial Data and Fuel Level

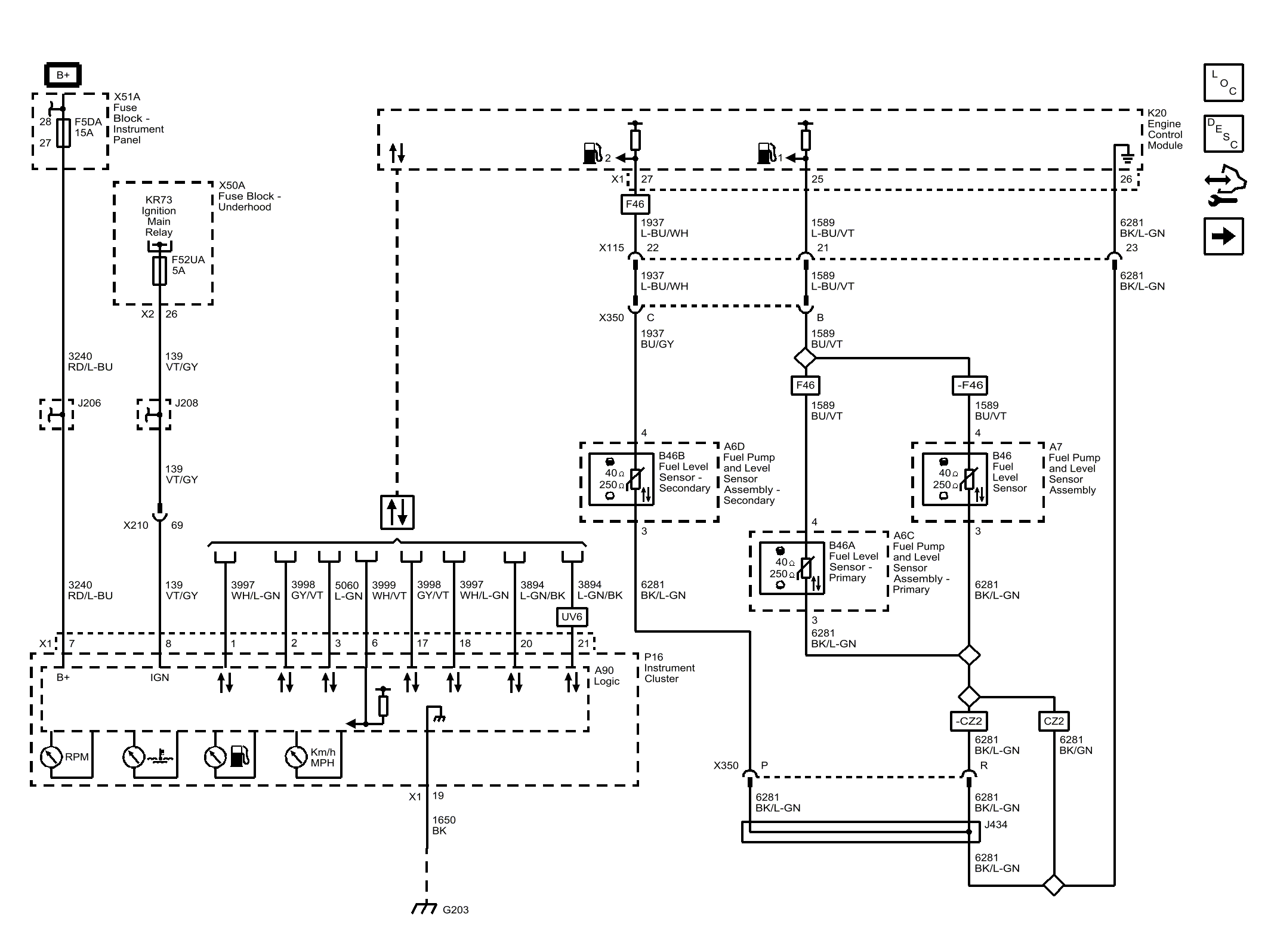

Fig 1: Power, Ground, Serial Data and Fuel Level

GM3792332

Courtesy of GENERAL MOTORS COMPANY
