Power, Ground, Data Communication, and Odometer

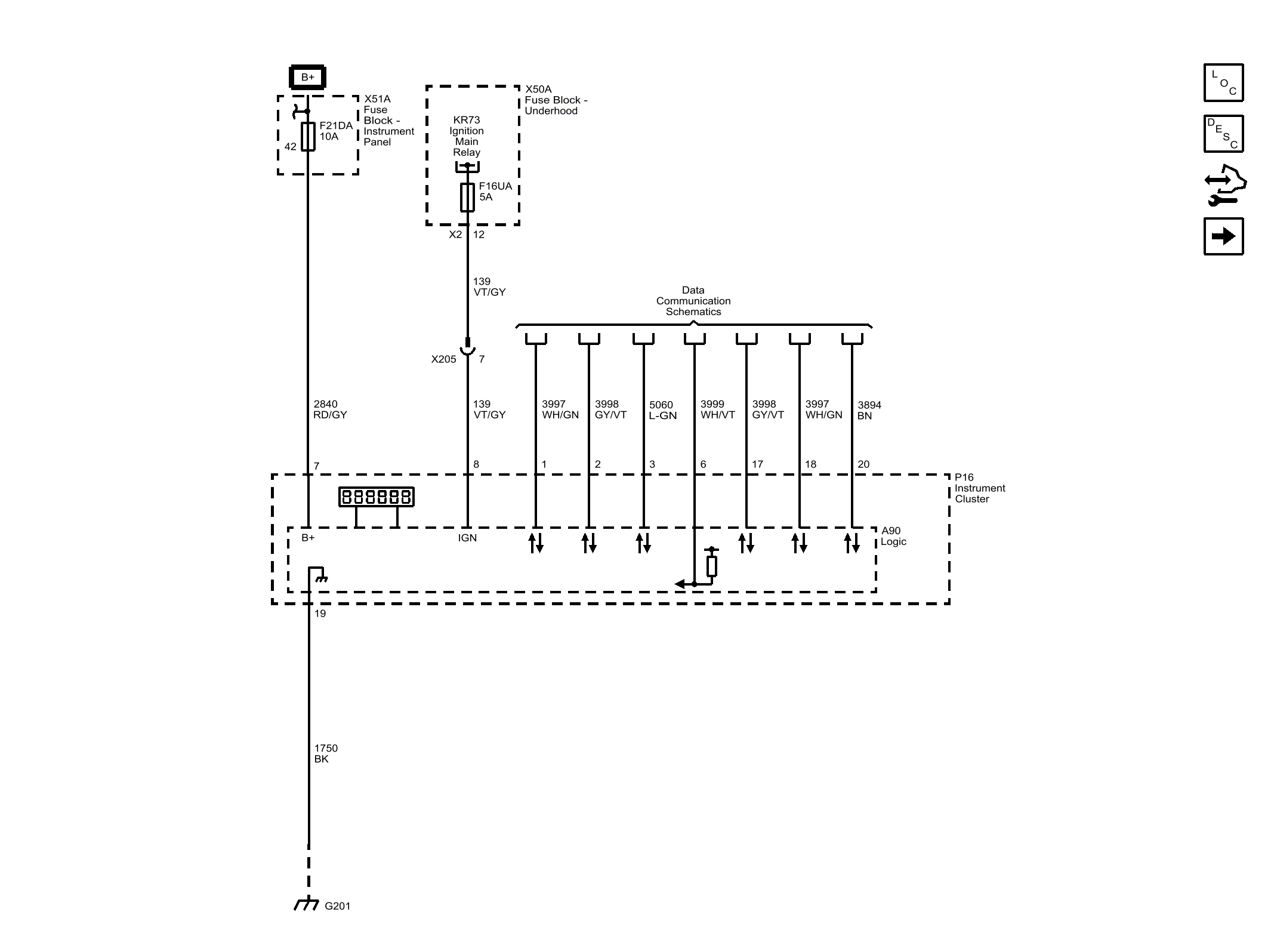

Fig 1: Power, Ground, Data Communication, and Odometer

GM3754777

Courtesy of GENERAL MOTORS COMPANY
