Instrument Cluster Wiring Schematics: Gauges

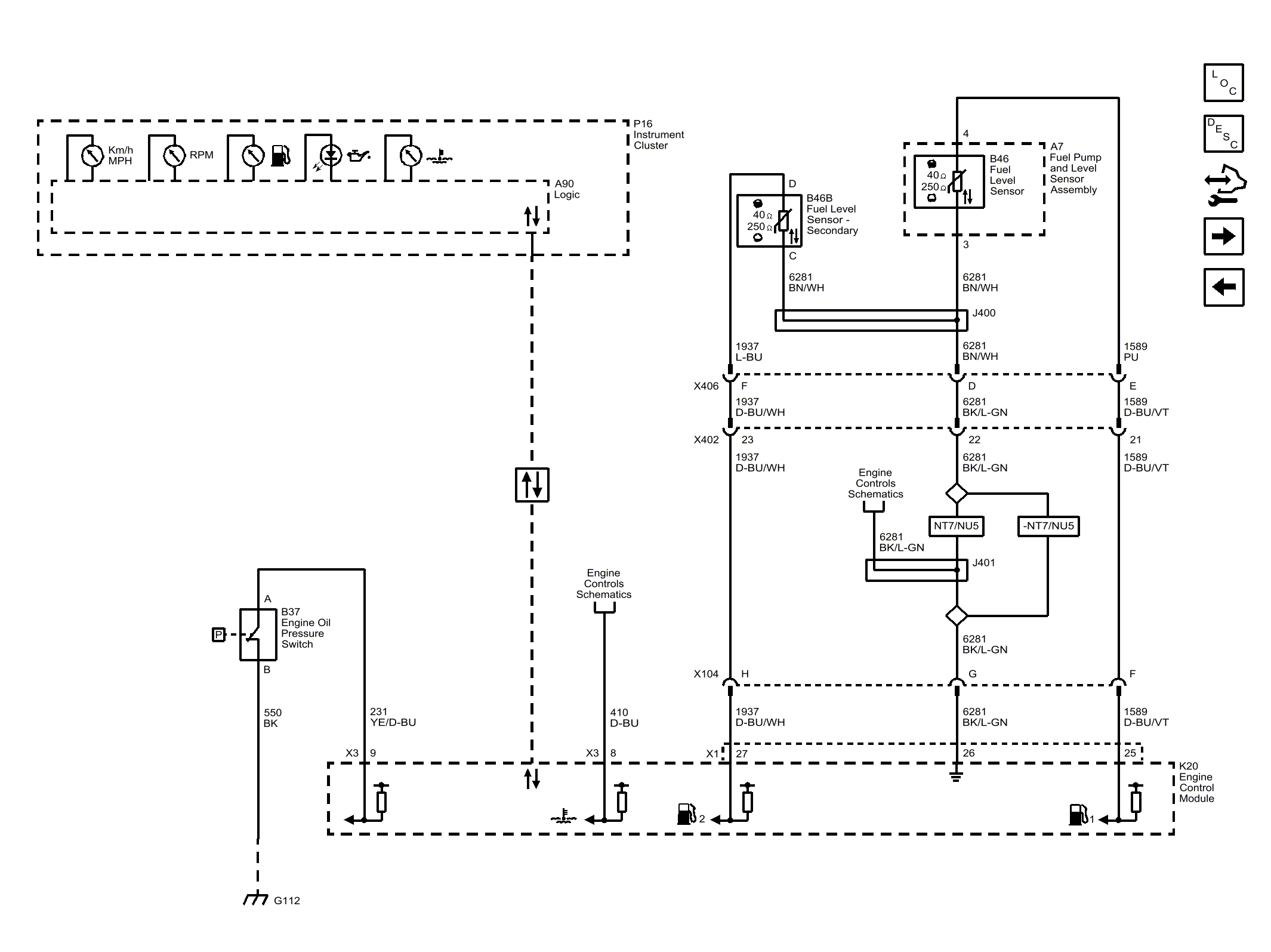

Fig 1: Gauges

GM3754779

Courtesy of GENERAL MOTORS COMPANY
