X507 Door Handle Jumper Harness to Driver Door Harness
|
|
|

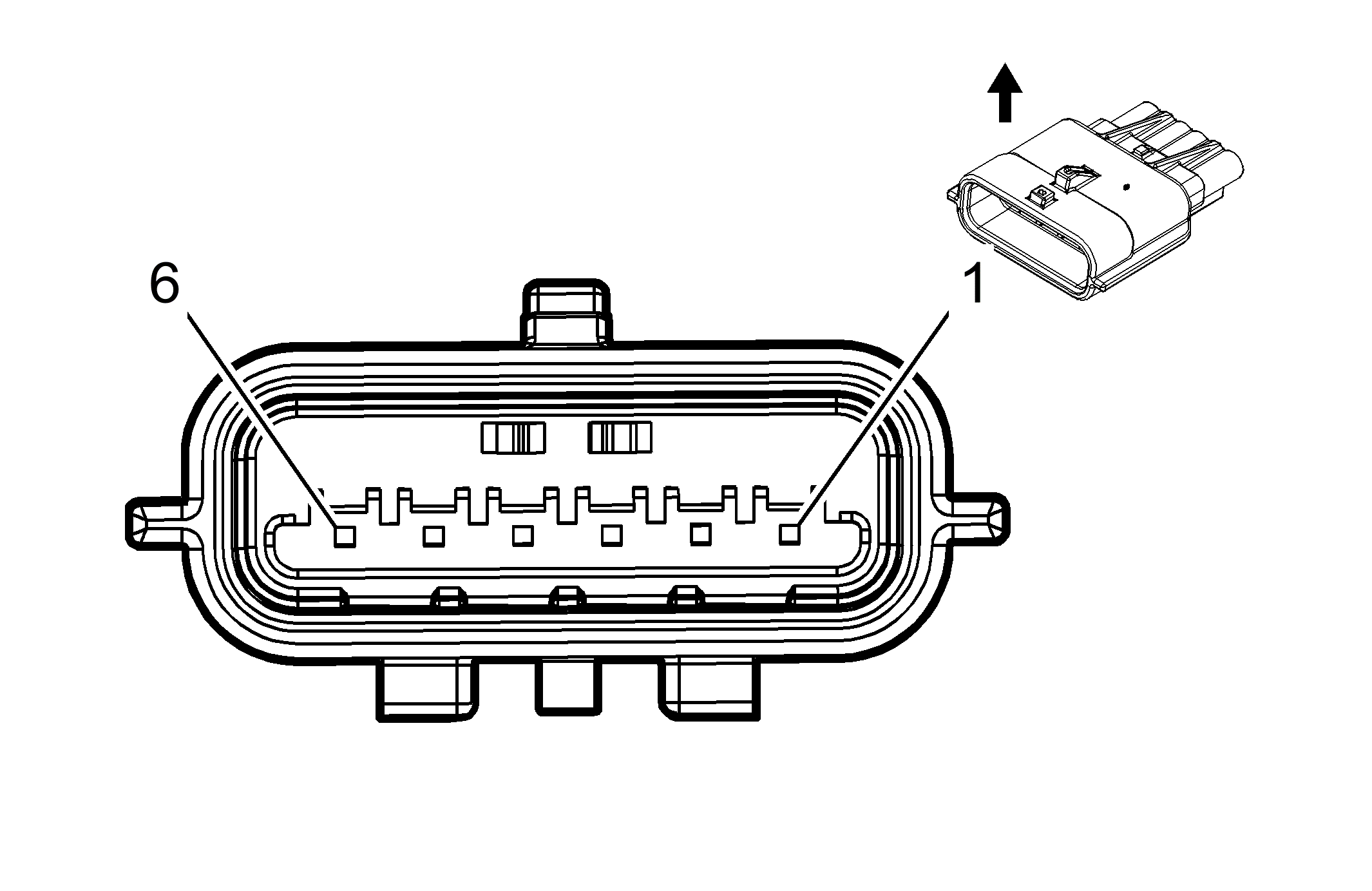

Connector Part Information
- Harness Type: Door Handle
- OEM Connector: 7283-8850-30
- Service Connector: 13576408
- Description: 6-Way F 0.64 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 7282-8850-30
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
J-35616-65B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
351 |
I |
- |
Signal Ground |
1 |
0.35 |
BK/WH |
351 |
II |
- |
| 2 |
0.35 |
GY |
5882 |
I |
- |
Driver Door Handle Switch Signal (2) |
2 |
0.35 |
D-BU |
5882 |
II |
- |
| 3 |
0.35 |
OG |
5881 |
I |
- |
Driver Door Handle Switch Signal (3) |
3 |
0.35 |
BN |
5881 |
II |
- |
| 4 |
0.35 |
BU |
351 |
I |
- |
Signal Ground |
4 |
0.35 |
BK/WH |
351 |
II |
- |
| 5 |
0.35 |
WH |
5713 |
I |
- |
Keyless Entry Antenna Low Reference (4) |
5 |
0.35 |
PK/BK |
5713 |
II |
- |
| 6 |
0.35 |
YE |
5709 |
I |
- |
Keyless Entry Antenna Signal (4) |
6 |
0.35 |
PK |
5709 |
II |
- |
