X239 Console USB Harness to Instrument Panel USB Harness
|
|
|

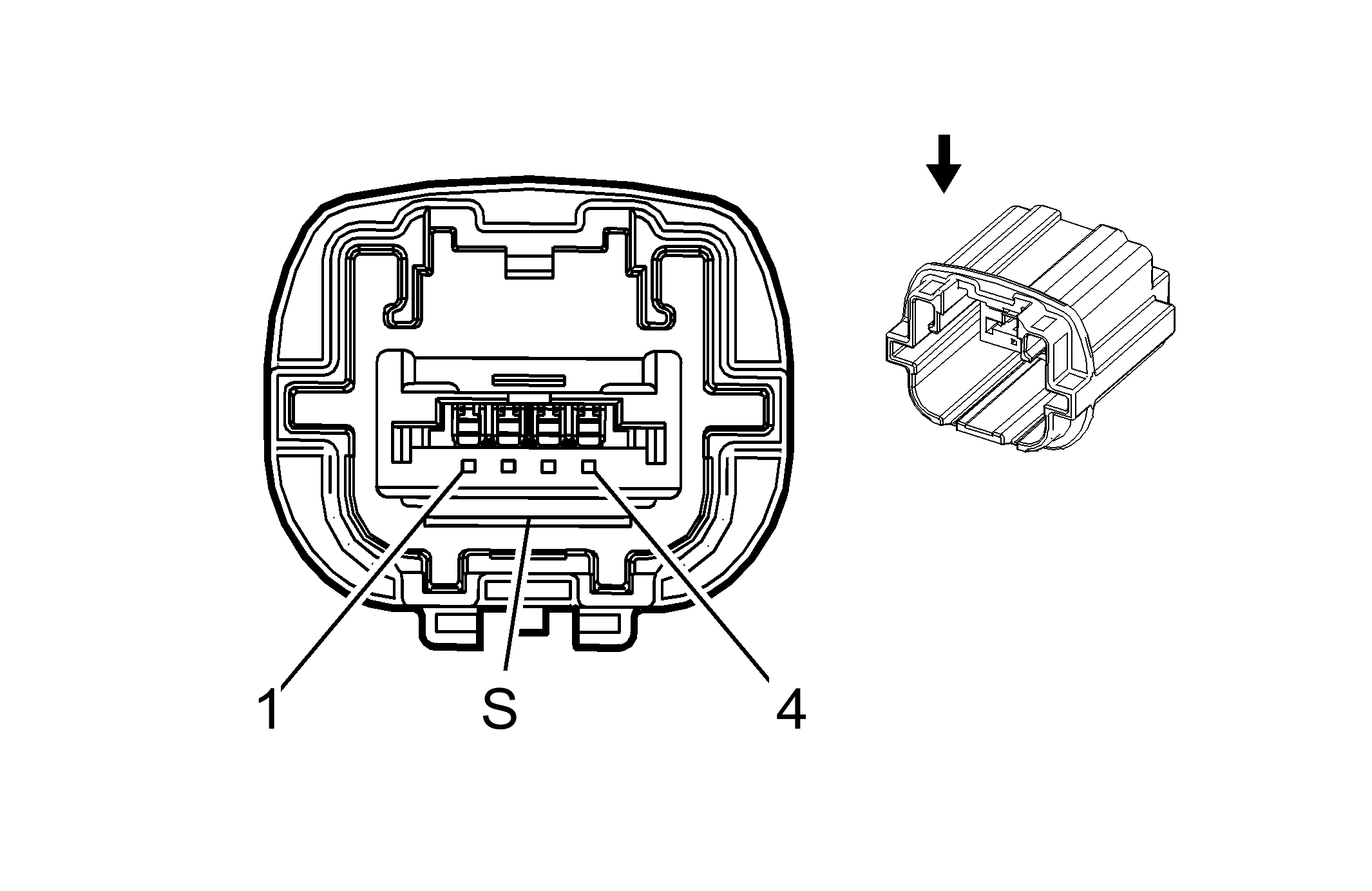

Connector Part Information
- Harness Type: Console USB
- OEM Connector: 7287-0503-30
- Service Connector: Service by Harness- See Part Catalog
- Description: 5-Way F (BK)
|

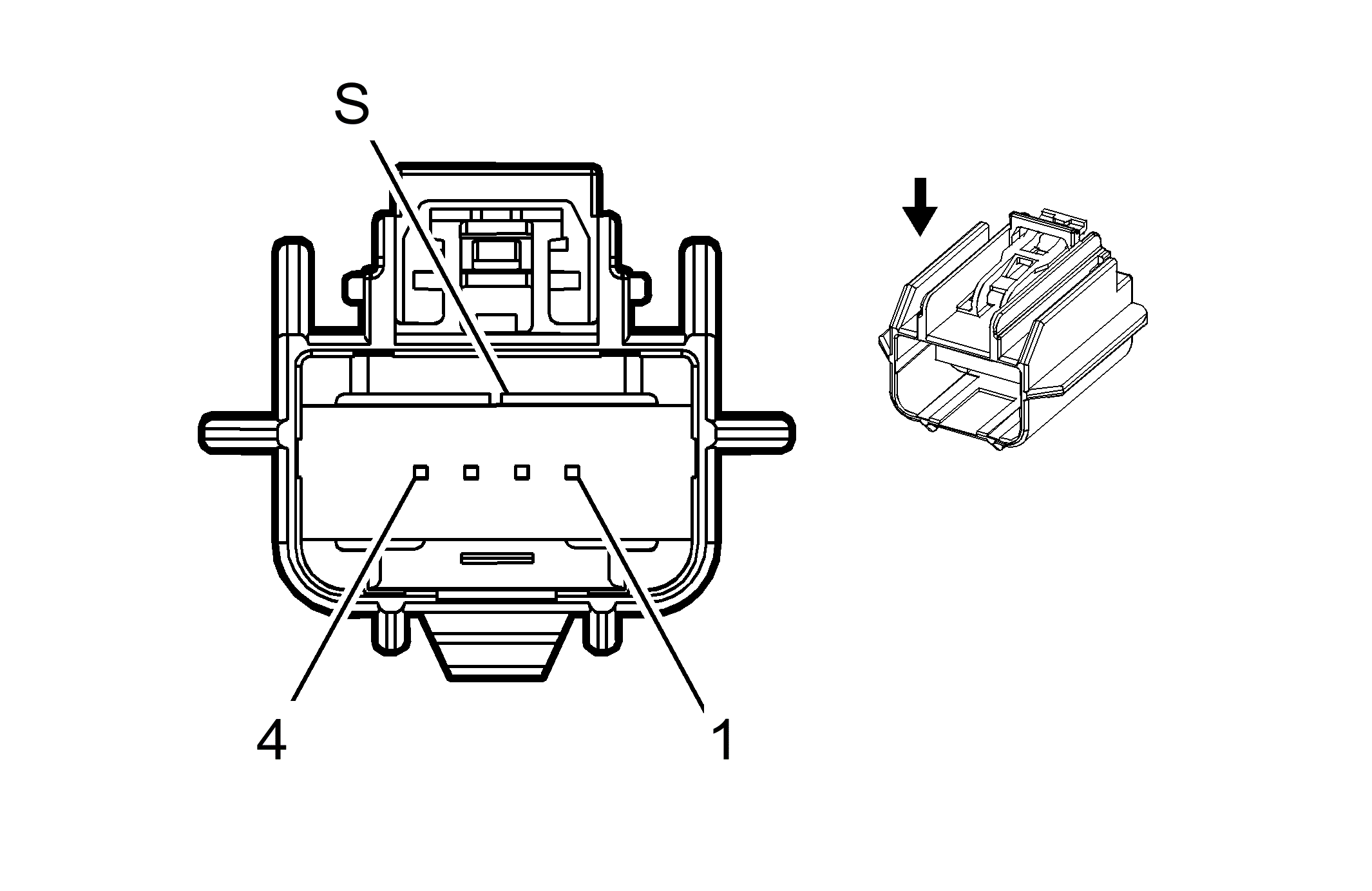

Connector Part Information
- Harness Type: Instrument Panel USB
- OEM Connector: 7286-0503-30
- Service Connector: Service by Harness- See Part Catalog
- Description: 5-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness- See Part Catalog |
J-35616-64B (L-BU) |
Not Available |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Not Available |
| II |
Service by Harness- See Part Catalog |
J-35616-65B (L-BU) |
Not Available |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
USB2 |
I |
- |
USB Serial Data Low Reference |
1 |
0.5 |
BK |
USB2 |
II |
- |
| 2 |
0.08 |
GN |
USB4 |
I |
- |
USB D (+) Serial Data |
2 |
0.08 |
GN |
USB4 |
II |
- |
| 3 |
0.08 |
WH |
USB3 |
I |
- |
USB D (-) Serial Data |
3 |
0.08 |
WH |
USB3 |
II |
- |
| 4 |
0.5 |
RD |
USB1 |
I |
- |
USB Serial Data Supply Voltage |
4 |
0.5 |
RD |
USB1 |
II |
- |
| S |
0.08 |
BARE |
USB5 |
I |
- |
USB Serial Data Drain Wire |
S |
0.08 |
BARE |
USB5 |
II |
- |
