Front Seat Back Cushion Finish Panel Replacement (W2E)

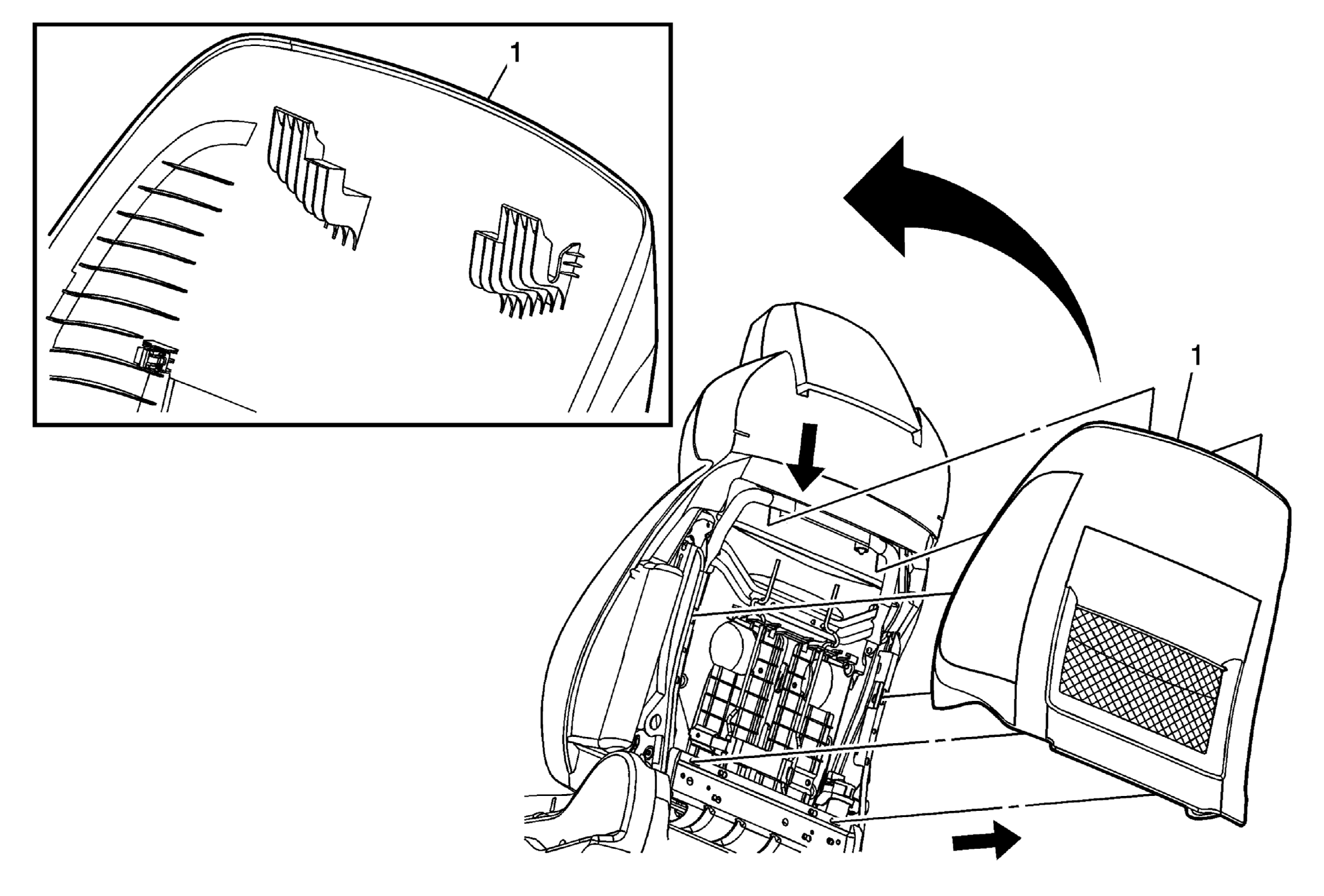

Fig 1: Identifying Driver Or Passenger Seat Back Cushion Finish Panel (W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Back Cushion Filler Panel Procedure Pull the panel rearward at the bottom edge first to disengage the lower retainers. Pull rearward and tilt the bottom of the panel upward to disengage the middle retainers. Slide the panel downward to release the upper hooks from the seat back frame. TIP: After the removal of the back panel, visually inspect the lower two clip towers for the bending or breaking before reinstallation. When the back panel has been reinstalled, pull back lightly on the bottom edge to ensure that the clips are engaged.

Callout

Component Name

Front Seat Back Cushion Filler Panel

Procedure

Pull the panel rearward at the bottom edge first to disengage the lower retainers.
Pull rearward and tilt the bottom of the panel upward to disengage the middle retainers.
Slide the panel downward to release the upper hooks from the seat back frame.

TIP: After the removal of the back panel, visually inspect the lower two clip towers for the bending or breaking before reinstallation. When the back panel has been reinstalled, pull back lightly on the bottom edge to ensure that the clips are engaged.
