Coat Hook Replacement (Coupe)

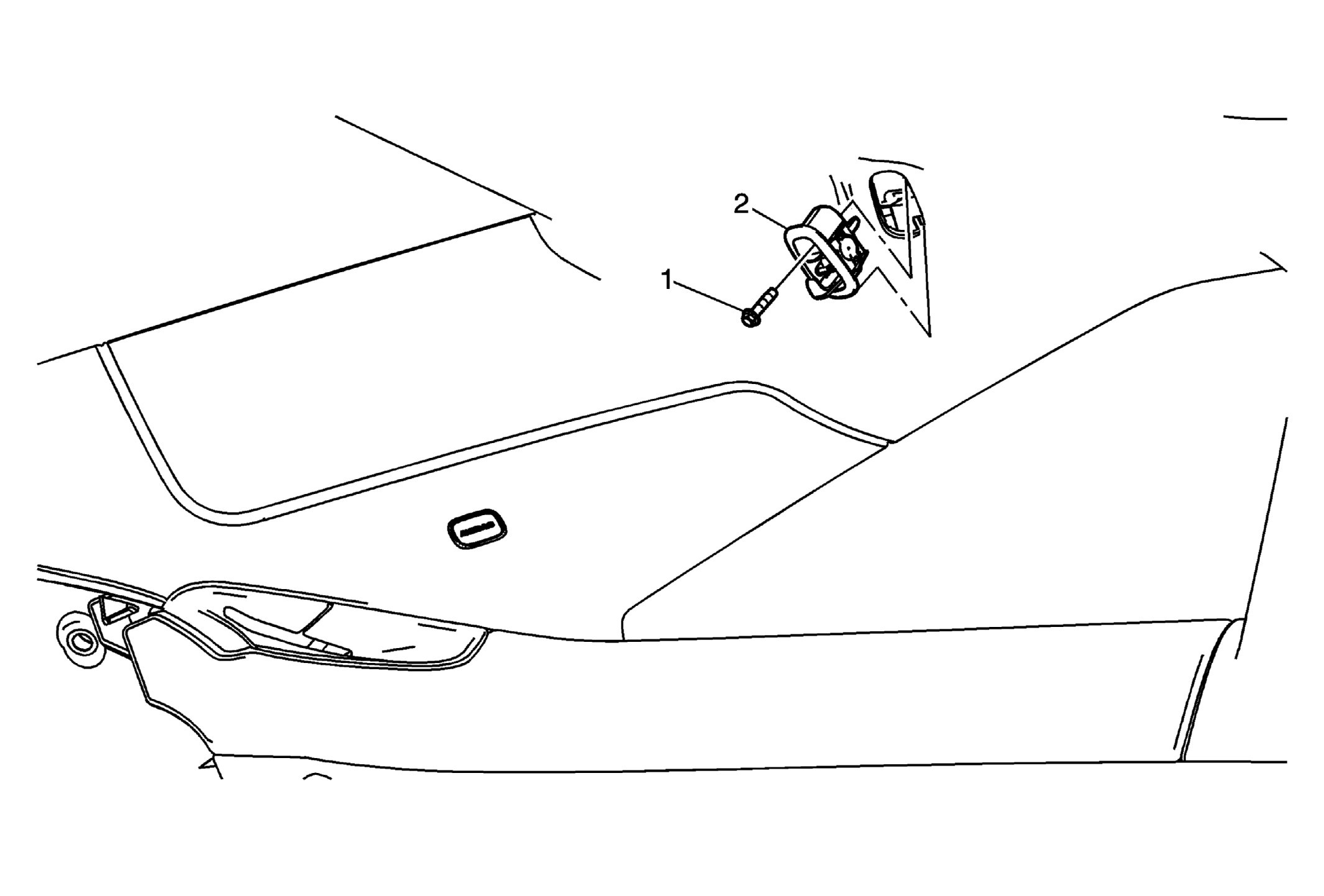

Fig 1: Coat Hook Fastener (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Coat Hook Fastener CAUTION: Refer to Fastener Caution . Procedure Fold articulating hook downward and hold. Use a small flat-bladed tool to open the coat hook cover to access the fastener. Tighten 6 N.m (53 lb in)
2	Coat Hook Assembly

Callout

Component Name

Coat Hook Fastener

CAUTION:

Procedure

Fold articulating hook downward and hold.
Use a small flat-bladed tool to open the coat hook cover to access the fastener.

Tighten
6 N.m (53 lb in)

Coat Hook Assembly
