Center Pillar Upper Garnish Molding Replacement

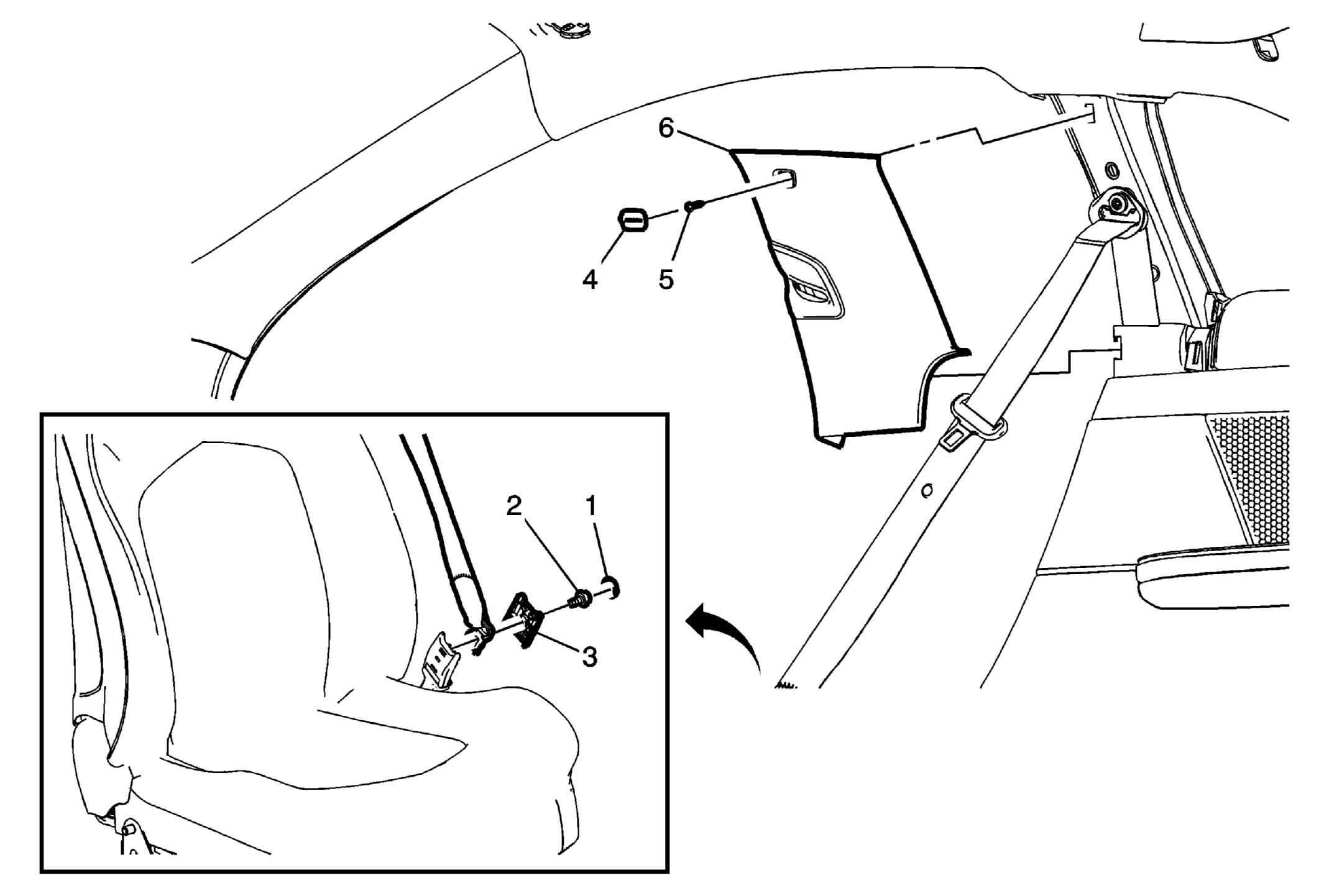

Fig 1: Center Pillar Upper Garnish Molding & Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the roof rail SIR system. Refer to SIR Disabling and Enabling .
1	Front Seat Belt Tensioner Cover Bolt (Retractor Side) Cover
2	Front Seat Belt Tensioner Cover Bolt (Retractor Side) Fastener CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Front Seat Belt Tensioner Cover Bolt (Retractor Side) Cover Assembly
4	Inflatable Restraint Airbag Plate
5	Center Pillar Upper Garnish Molding Fastener Tighten 3 N.m (27 lb in)
6	Center Pillar Upper Garnish Molding Assembly Procedure Detach the escutcheon from the center pillar upper garnish molding. Disengage the seat belt strap from the center pillar upper garnish molding.
