Rear Compartment Lid Weatherstrip Replacement (Coupe)

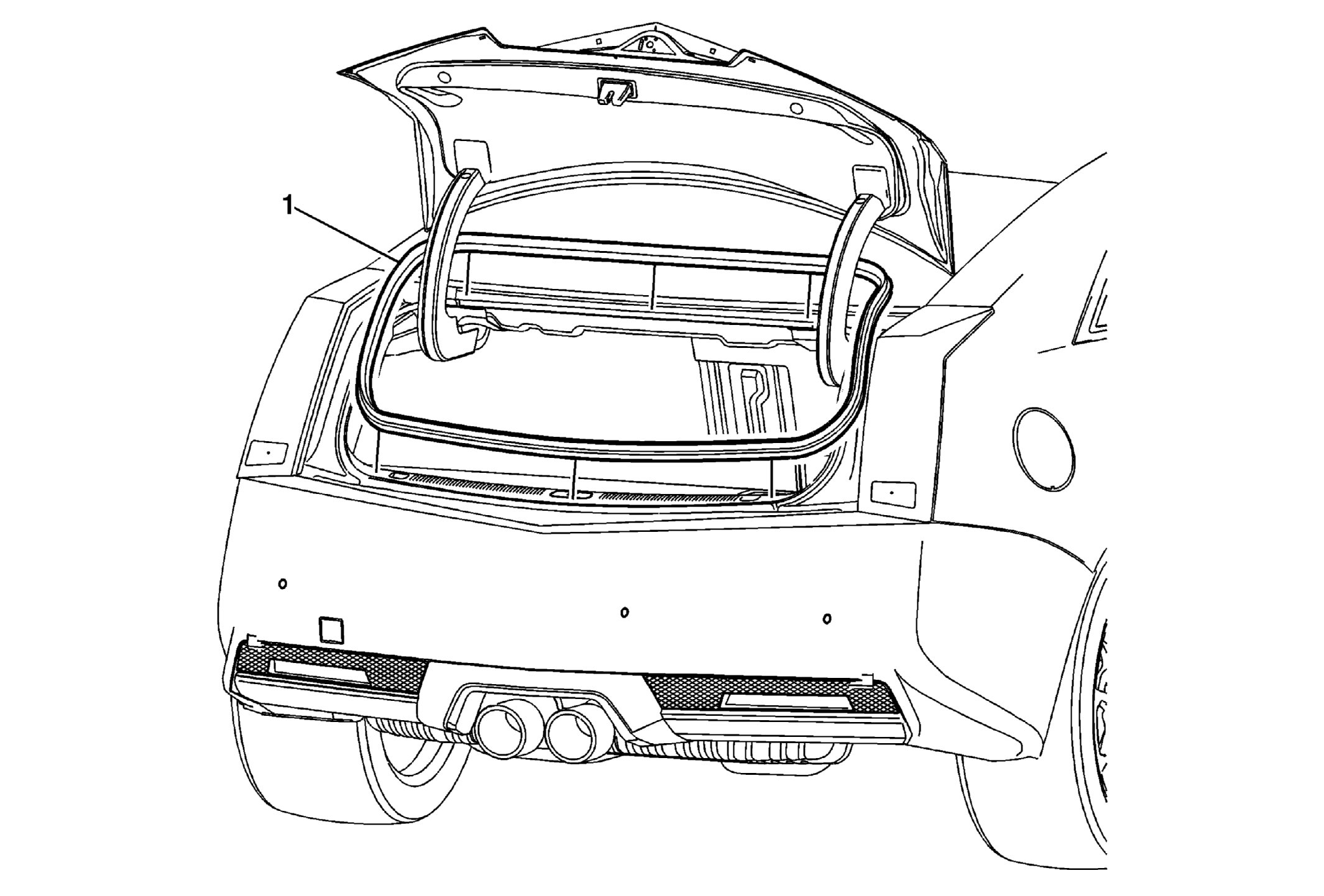

Fig 1: Rear Compartment Lid Weatherstrip (Coupe)
GM2328336Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Weatherstrip

Procedure

  1. Disconnect any electrical connector.
  2. Clean the area where the seal will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha
