Steering Column Shroud Replacement (With Key Release Lever Knob)

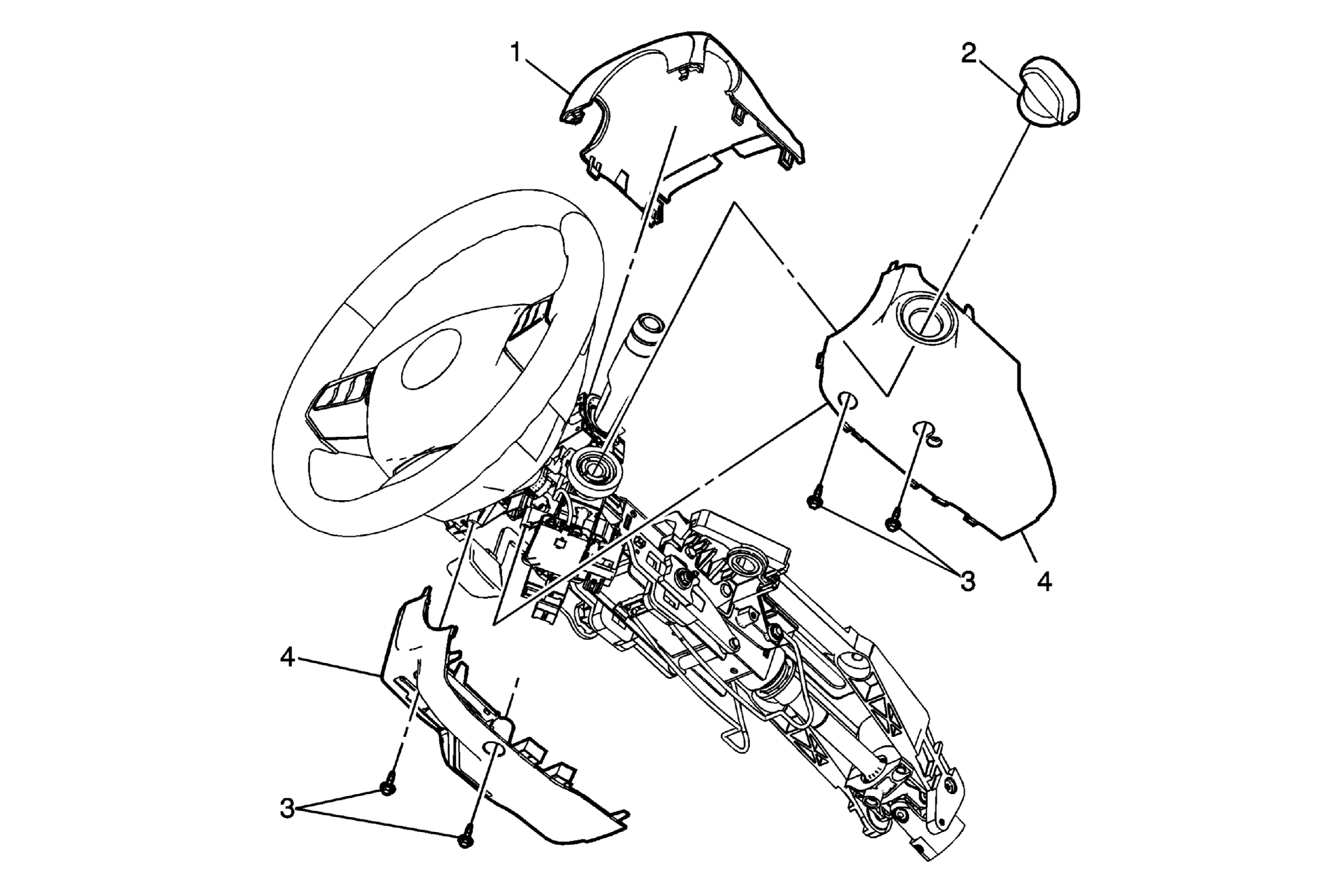

Fig 1: Identifying Steering Column Shroud (With Key Release Lever Knob)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Steering Column Upper Shroud TIP:  Detach the steering column housing cover from the steering column upper shroud before attempting removal.
2	Steering Column Key Release Lever Knob Procedure  In order to release the knob, push a pick type tool into the access hole on the bottom of the knob while pulling on the knob. Refer to Steering Column Key Release Lever Knob Replacement .
3	Steering Column Shroud Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . TIP:  When removing or replacing one side of the steering column shroud, remove all 4 steering column shroud bolts in order to allow for the slack necessary to separate the pieces. Tighten  3 N.m (27 lb in)
4	Steering Column Shroud (Qty: 2) TIP:  Replace each piece of the steering column shroud as necessary.
