Starter Replacement (LSA)

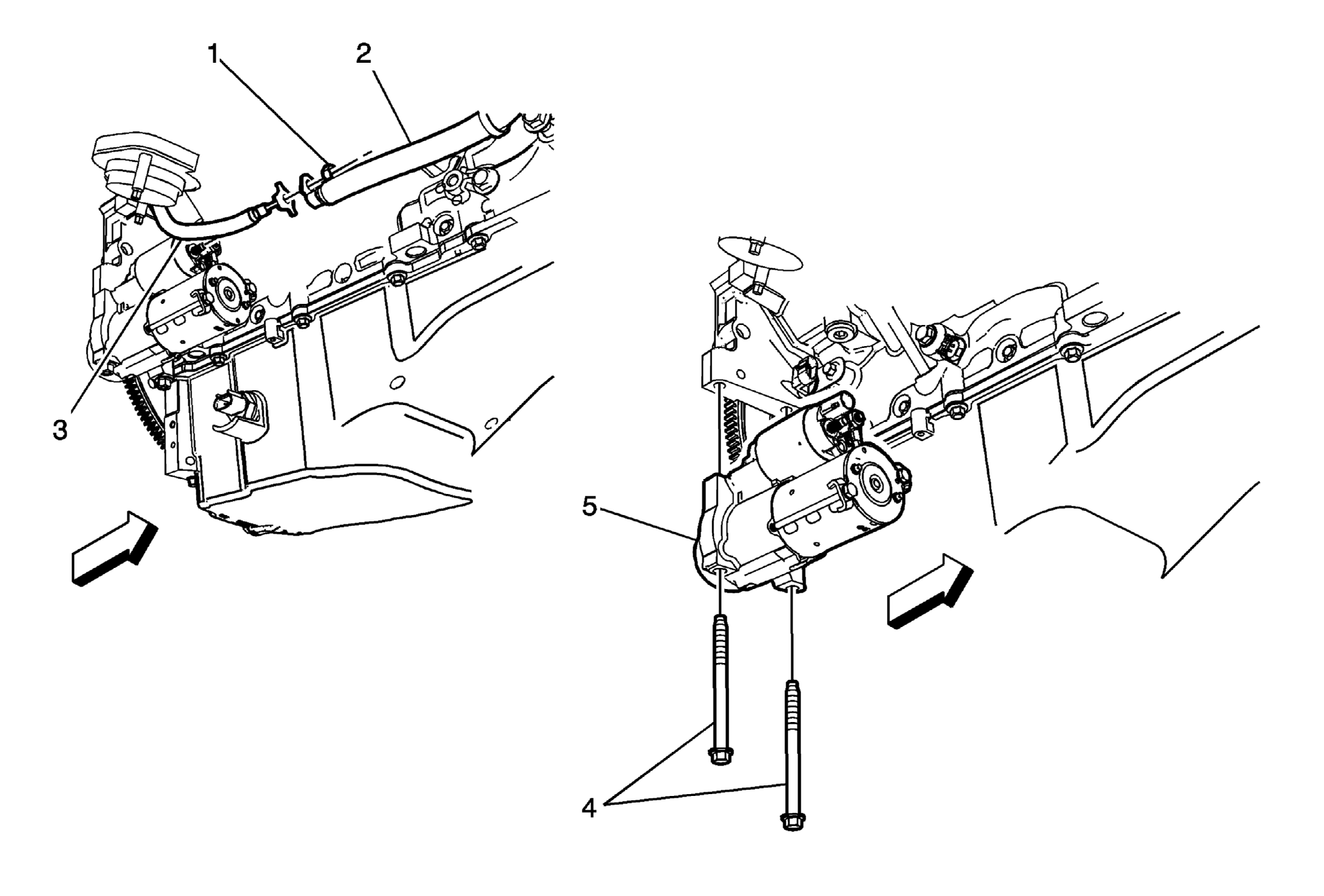

Fig 1: Starter Components (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable.Refer to Battery Negative Cable Disconnection and Connection . Remove the right catalytic converter.Refer to Catalytic Converter Replacement - Right Side . Disconnect the connector on the starter solenoid.
1	Battery Solenoid Nut CAUTION: Refer to Fastener Caution Tighten 10 N.m (115 lb in)
2	Battery Cable (Fuse Block-Underhood)
3	Battery Cable (Generator)
4	Bolt (Qty: 2) Tighten 50 N.m (37 lb ft)
5	Starter
