Exhaust System Replacement

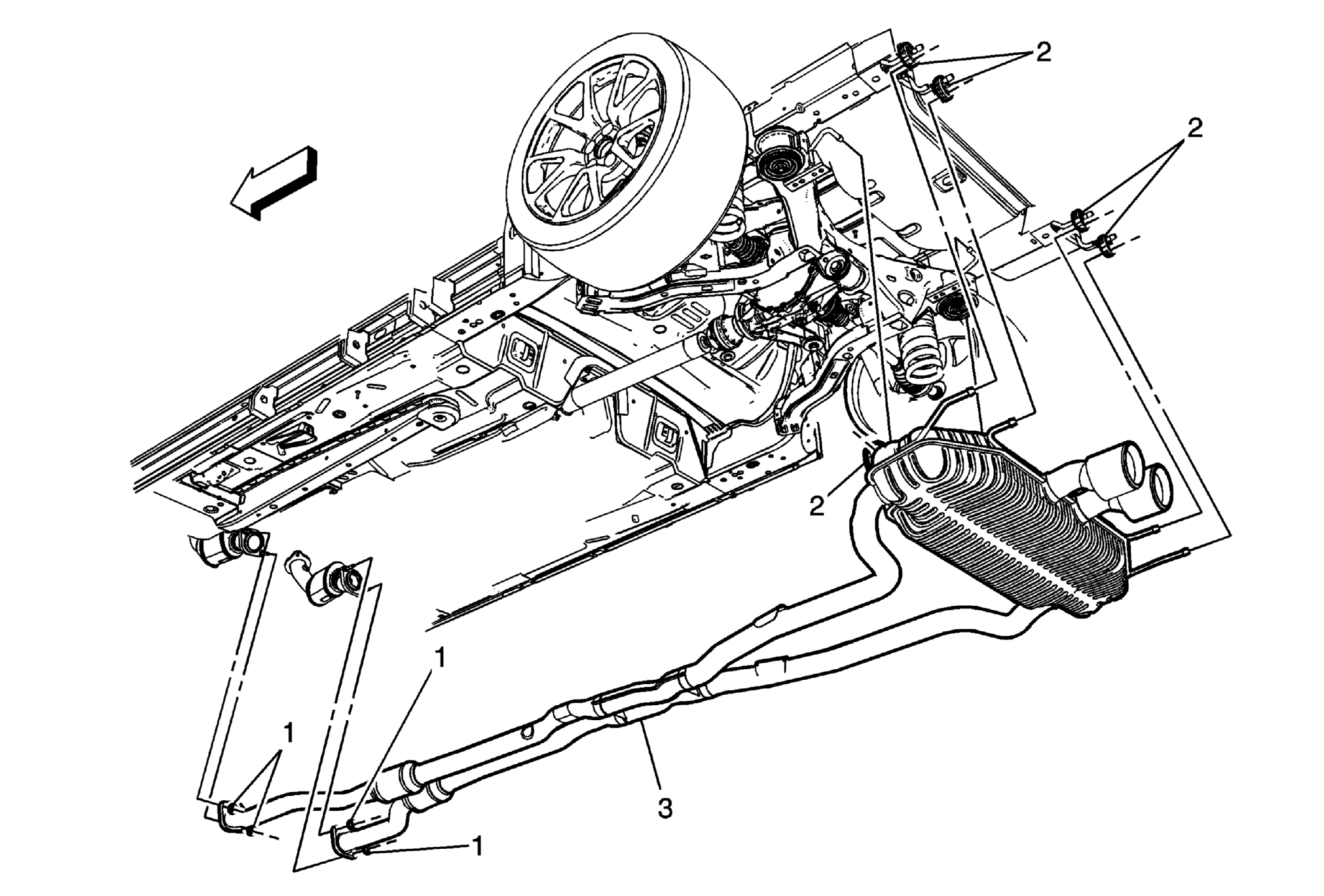

Fig 1: Exhaust System (LSA-Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Protective Goggles and Glove Warning . WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the floor panel tunnel brace.
1	Exhaust Pipe Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 17 N.m (12 lb ft).
2	Exhaust Insulators (Qty: 6)
3	Exhaust Muffler and Converters
