Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LSA)

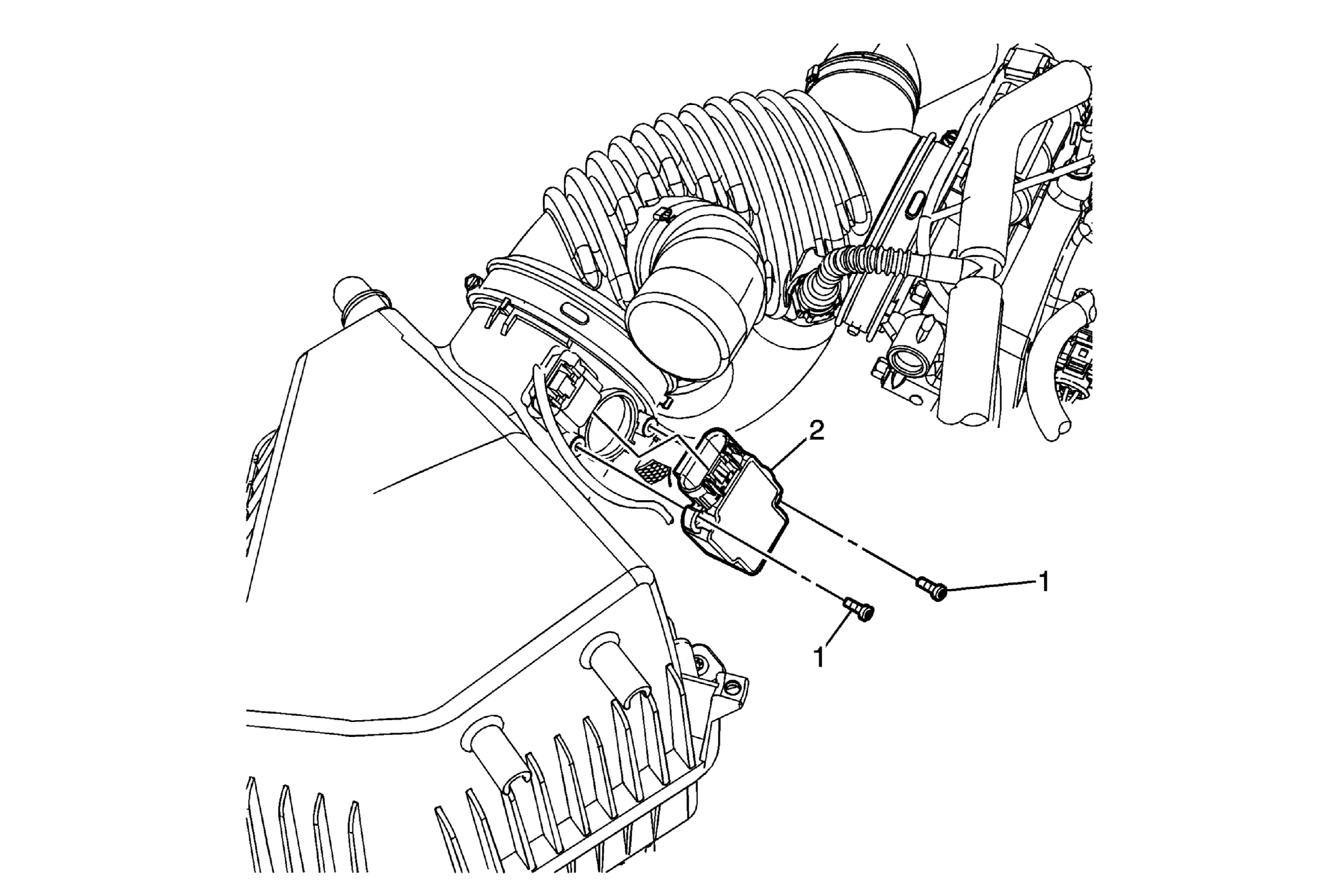

Fig 1: Identifying Mass Airflow Sensor
GM2164111Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the mass airflow harness connector.
