X700 Body Harness to Left Rear Door Harness

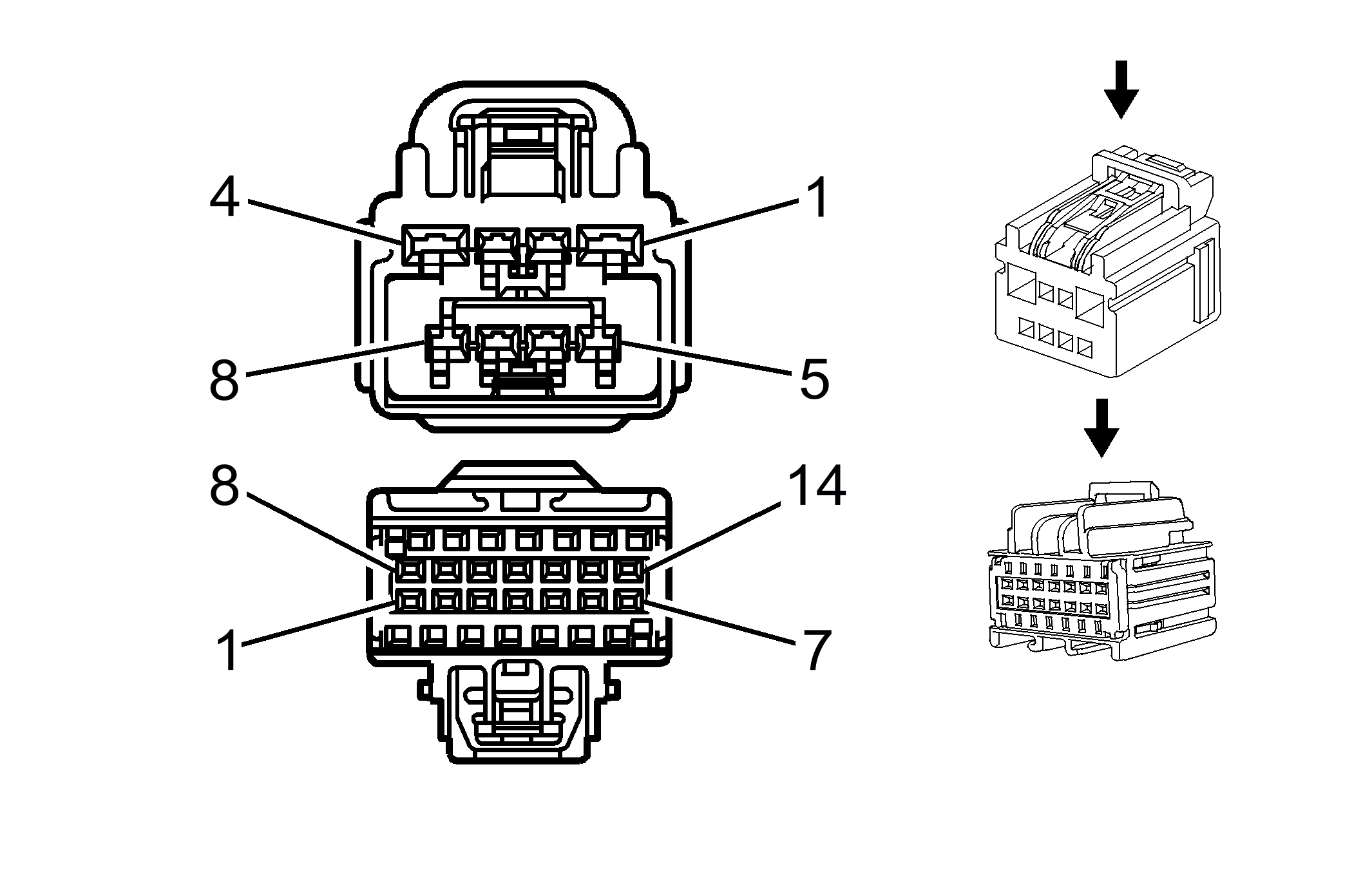

Connector Part Information Harness Type: Body OEM Connector: 7283-6448-40 Service Connector: 19153181 Description: 8-Way F YESC Kaizen Series (L-GY) Harness Type: Body OEM Connector: 7283-9068-90 Service Connector: 15127038 Description: 14-Way F Kaizen 64 Series (BU)	Connector Part Information Harness Type: Left Rear Door OEM Connector: 7282-0523-30 Service Connector: Service by Harness - See Part Catalog Description: 22-Way M (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	J-35616-35 (VT)	Not Available	Not Available	Not Available	Not Available	Not Available
II	13575845	J-35616-64B (L-BU)	J-38125-215A	SAIT-A03T-M064	14	P	P
III	Not Available	J-35616-2A (GY)	Not Available	Not Available	Not Available	Not Available	Not Available
IV	Not Available	J-35616-5 (PU)	Not Available	Not Available	Not Available	Not Available	Not Available
V	Not Available	J-35616-3 (GY)	Not Available	Not Available	Not Available	Not Available	Not Available
VI	Not Available	J-35616-65B (L-BU)	Not Available	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	1	RD/WH	4740	I	-	Battery Positive Voltage	A1	1	RD/WH	4740	IV	-
2	1	D-GN	6165	III	UA2	Left Rear Passenger Door Lock Actuator Deadbolt Control	A2	1	D-GN	6165	V	UA2
3	1	GY	295	III	-	Door Lock Actuator Lock Control	A3	1	GY	295	V	-
4	2	BK	350	I	-	Ground	A4	2	BK	350	IV	-
5	1	TN	294	III	-	Door Lock Actuator Unlock Control	A5	1	TN	294	V	-
6	-	-	-	-	-	Not Occupied	A6	-	-	-	-	-
7	0.35	GY	8	III	-	I/P Dimmer Switch Signal	A7	0.35	GY	8	V	-
8	0.35	GY/BK	690	III	-	Courtesy Lamp Supply Voltage	A8	0.35	GY/BK	690	V	-
1	0.35	L-BU/BK	747	I	-	Left Rear Door Ajar Switch Signal	B1	0.35	L-BU/BK	747	VI	-
2	0.35	D-BU/WH	1179	III	-	Left Rear Door Open Switch Signal	B2	0.35	D-BU/WH	1179	VI	-
3	0.35	D-BU	1307	III	-	Power Window Master Switch Lockout Signal	B3	0.35	D-BU	1307	VI	-
4	0.35	PU	169	I	-	Power Window Master Switch Left Rear Down Signal	B4	0.35	PU	169	VI	-
5	0.35	D-GN	168	III	-	Power Window Master Switch Left Rear Up Signal	B5	0.35	D-GN	168	VI	-
6	0.5	YE	116	II	-	Left Rear Speaker Output (-)	B6	0.5	YE	116	VI	-
7	0.5	BN	199	III	-	Left Rear Speaker Output (+)	B7	0.5	BN	199	VI	-
8	0.35	WH	901	III	TSQ	IC 2 Control	B8	0.35	WH	901	VI	TSQ
9	0.35	BN	6157	II	ATH	Left Rear Door Unlatch Enable Signal	B9	0.35	BN	6157	VI	ATH
10	-	-	-	-	-	Not Occupied	B10	-	-	-	-	-
11	0.35	L-BU	6622	II	-	Left Rear Side Impact Sensing Module Signal	B11	0.35	L-BU	6622	VI	-
12	0.35	L-GN/BK	6623	II	-	Left Rear Side Impact Sensing Module Low Reference	B12	0.35	L-GN/BK	6623	VI	-
13-14	-	-	-	-	-	Not Occupied	B13-B14	-	-	-	-	-
