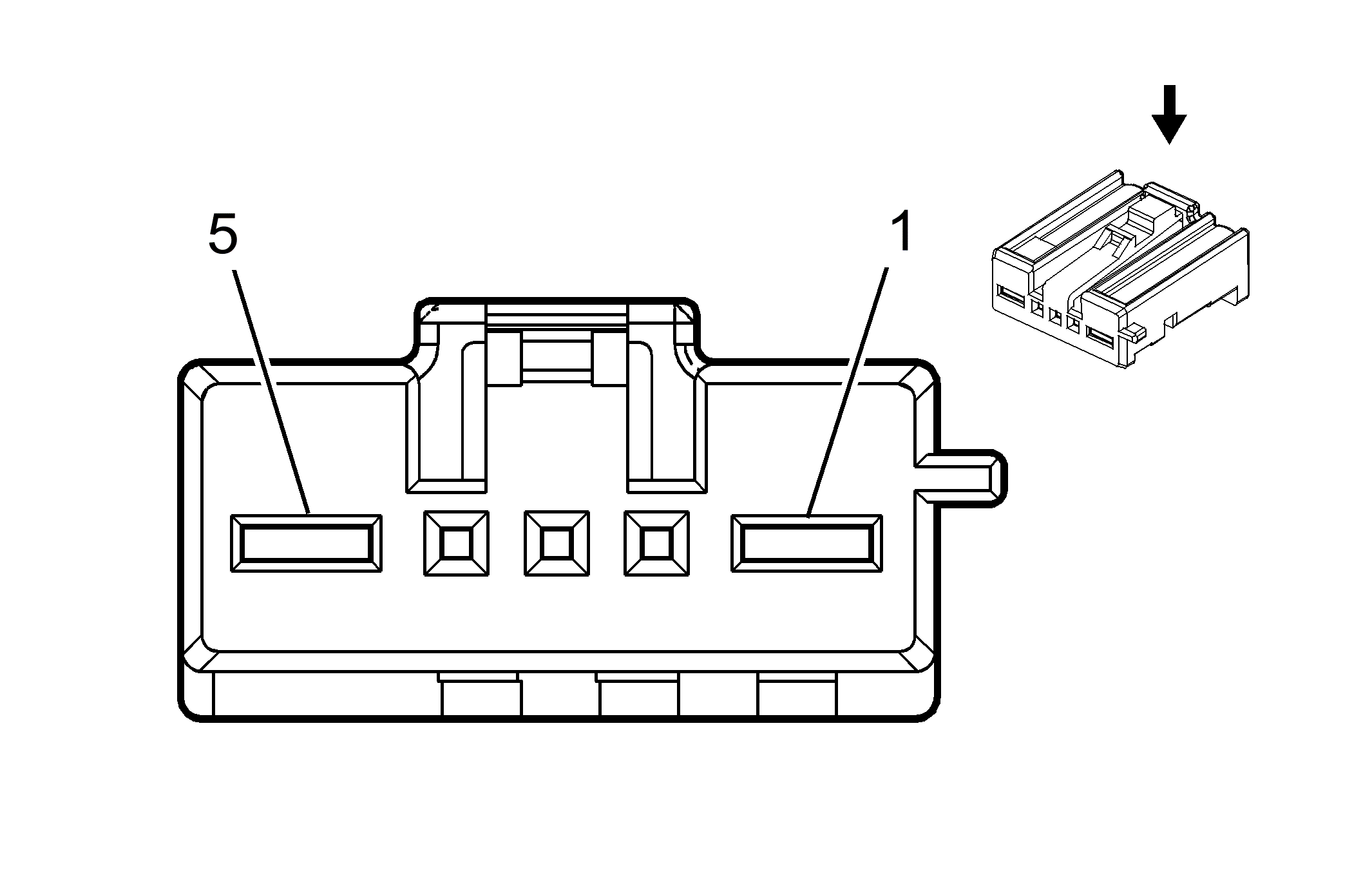

M51P Seat Horizontal Motor - Passenger
|
|
Connector Part Information
- Harness Type: Right Front Seat
- OEM Connector: 1438992-5
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way F 0.64 Micro Power, Power Quadlock Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-4A (PU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
TN |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| 2-4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
1 |
L-GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
