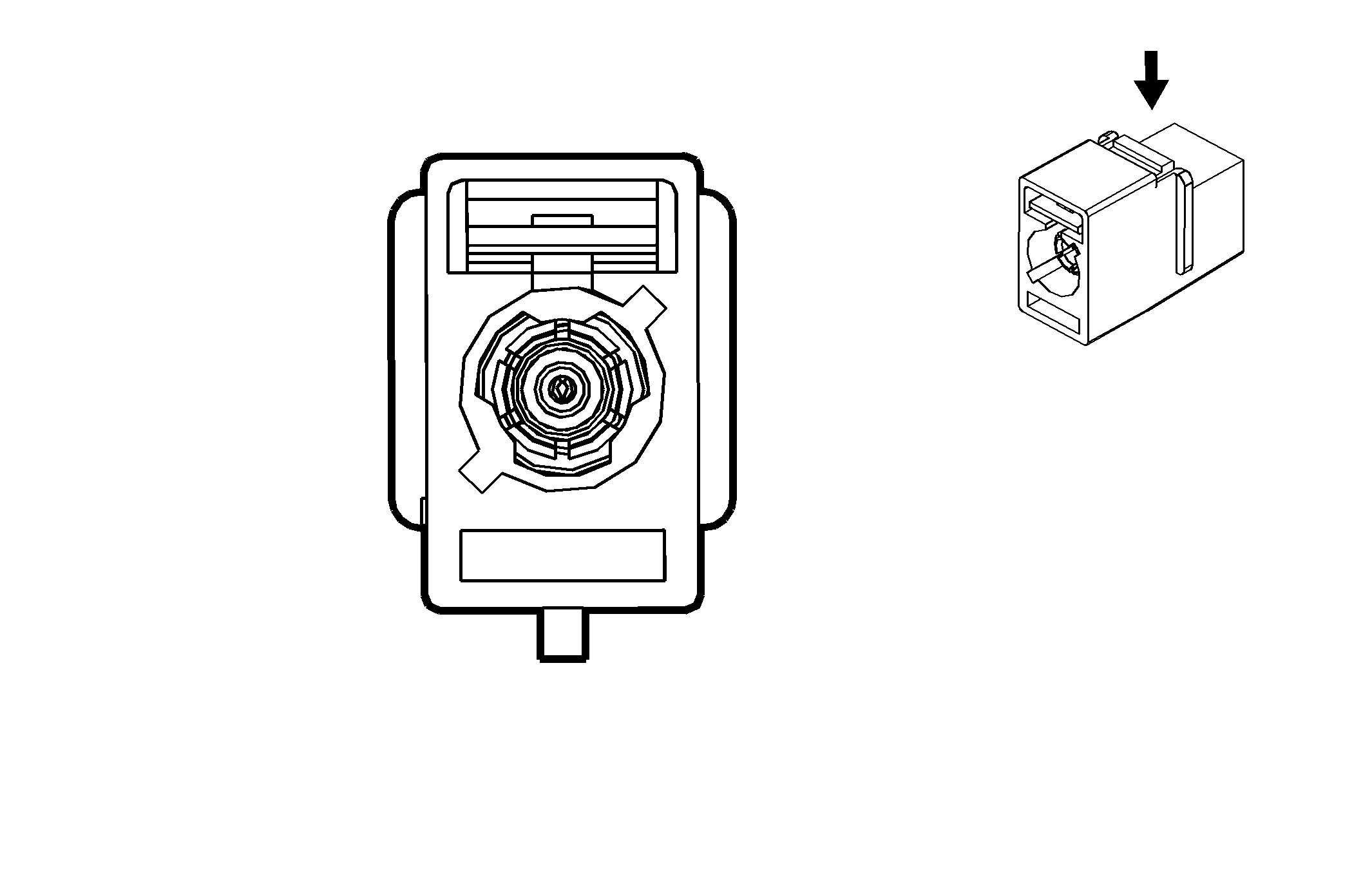

E6 Center High Mounted Stop Lamp (Wagon) X2
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 2FA1-NASP-CO1-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way COAX F (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
Antenna AM/FM Signal |
I |
- |
