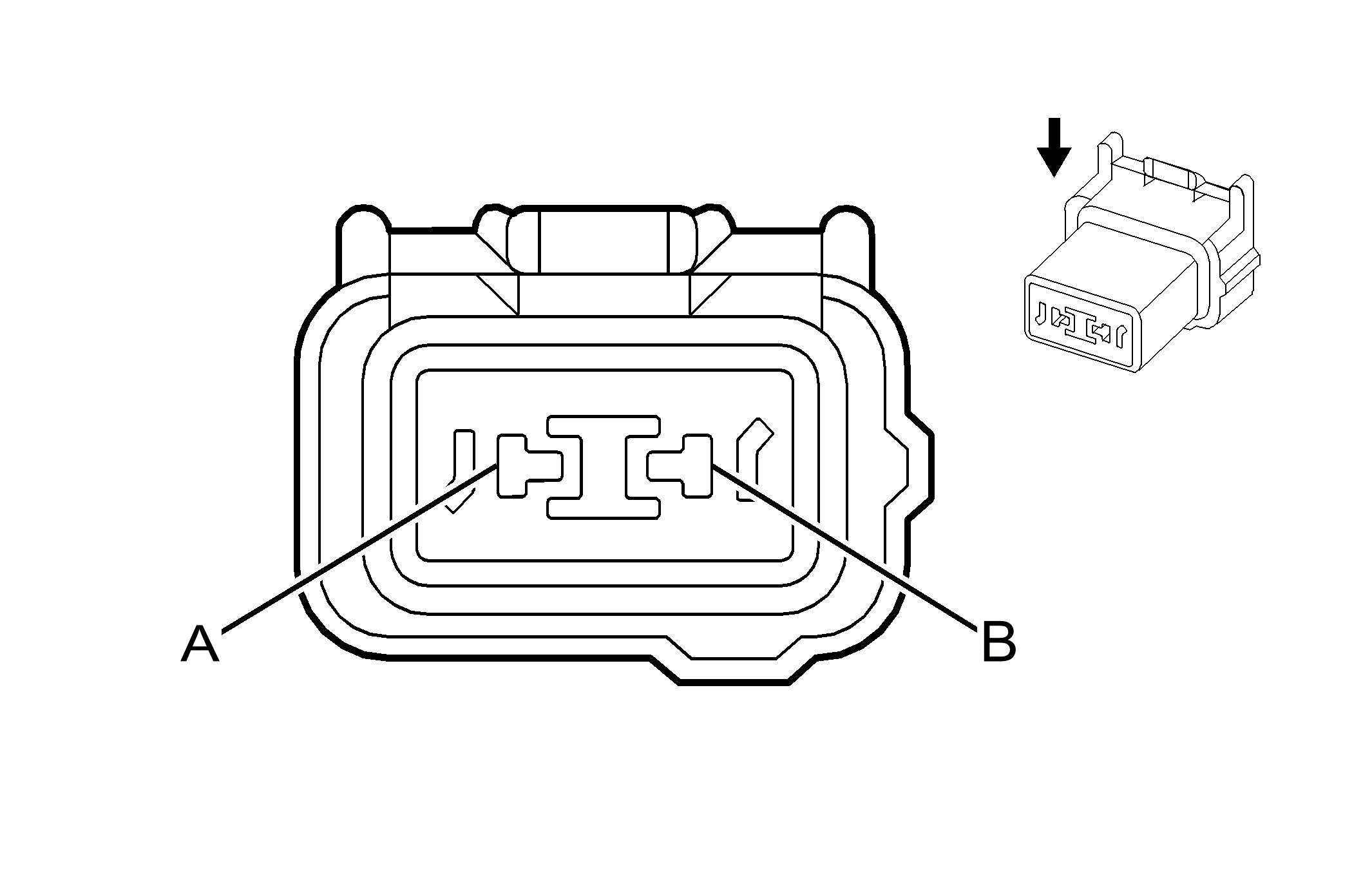

E4RF Turn Signal Lamp - Right Front (without T4F)
|
|
Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: 1-1438608-3
- Service Connector: Service by Harness- See Part Catalog
- Description: 2-Way F MQS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.8 |
BK |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
I |
- |
| B |
0.8 |
BK |
250 |
Ground |
I |
- |
