C1 Battery (-)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 7003-6001
- Service Connector: Service by Harness - See Parts Catalog

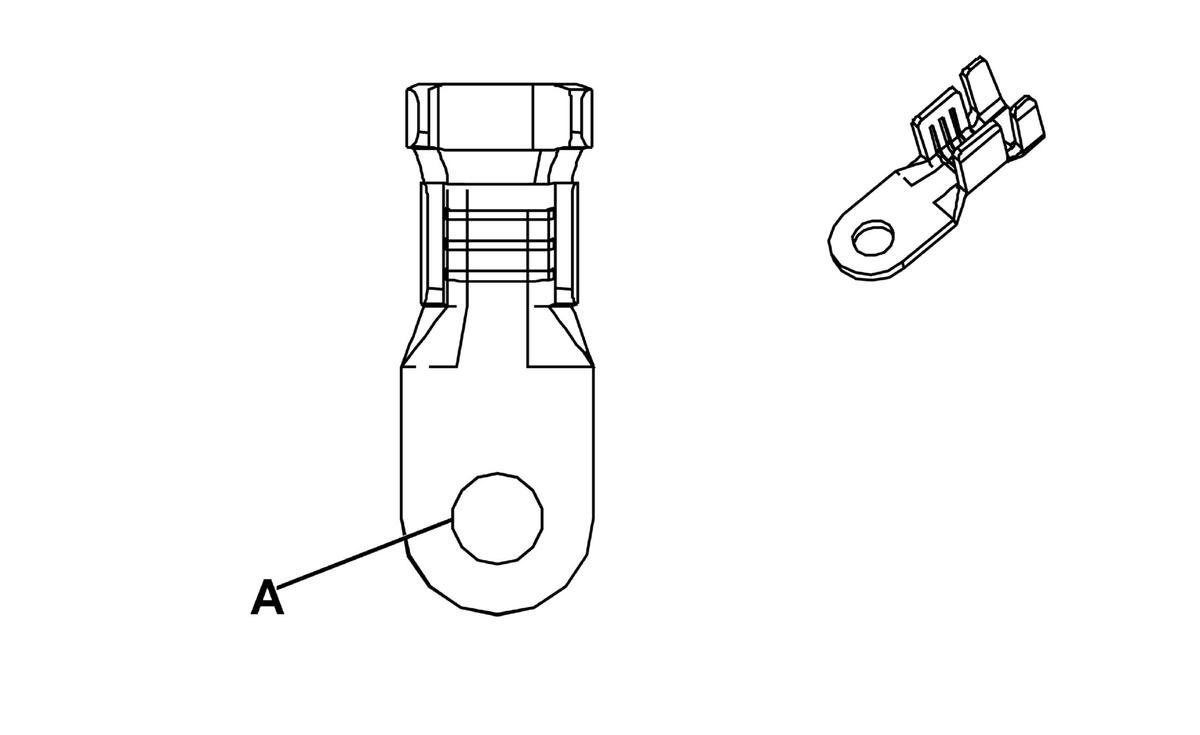

- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
50 |
BK |
50 |
Ground |
I |
- |
