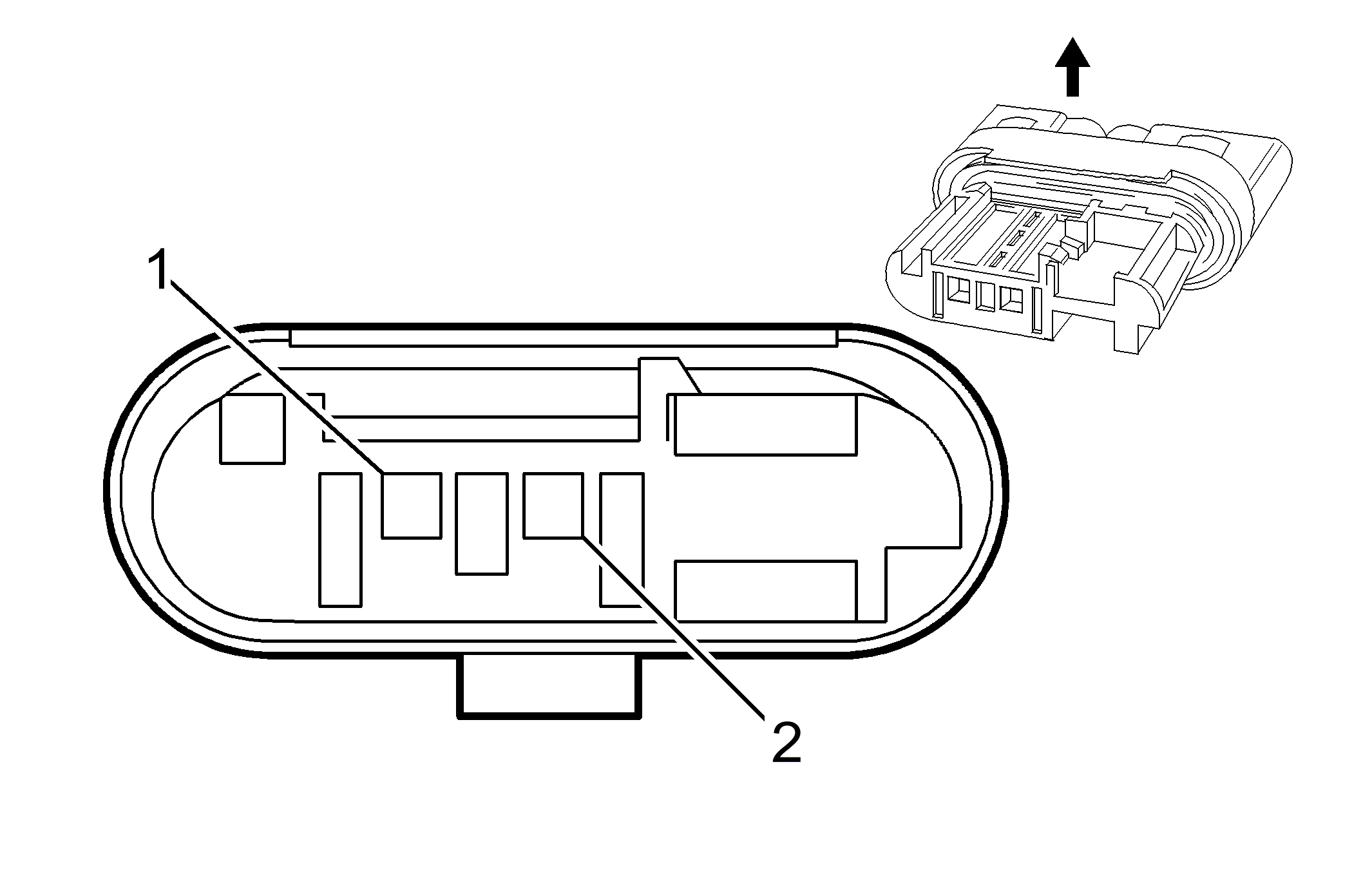

B82R Pedestrian Impact Detection Sensor - Upper Beam Rear (B3T)
|
|
Connector Part Information
- Harness Type: Front Pedestrian Protection
- OEM Connector: 9-1241905-9
- Service Connector: Service by Harness- See Part Catalog
- Description: 2-Way F 0.64 MQS Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness- See Part Catalog |
J-35616-64B (L-BU) |
12094429 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
2160 |
Front End Discriminating Sensor Signal |
I |
- |
| 2 |
0.35 |
GY/BK |
2260 |
SIR Forward Sensor Low Reference |
I |
- |
