B75B Mass Air Flow/Intake Air Temperature Sensor
|
|

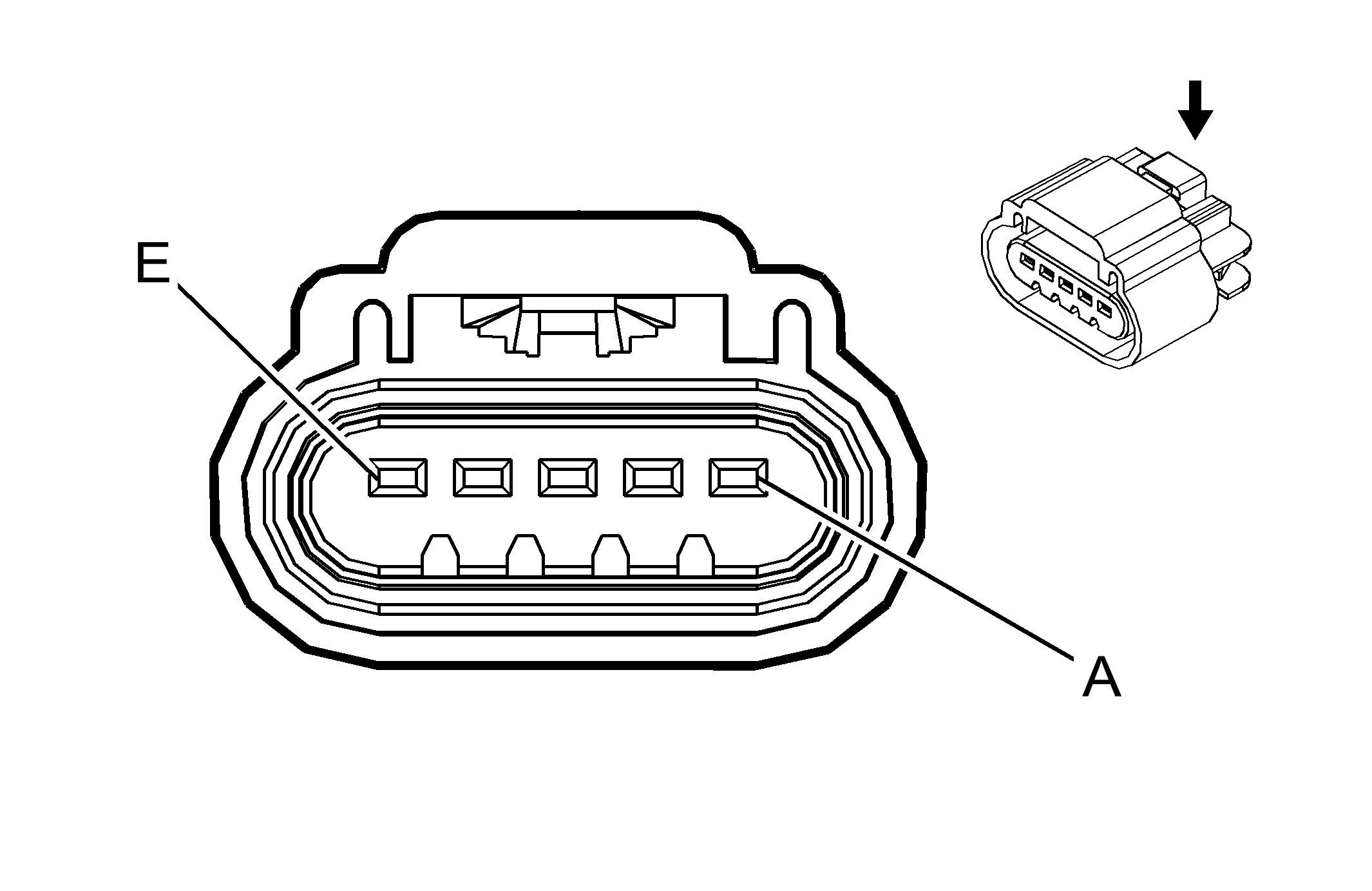

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13827319
- Service Connector: 13579601
- Description: 5-Way F 150 GT Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-14 (GN) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
TN |
2760 |
Intake Air Temperature Sensor Low Reference |
I |
LSA |
| B |
0.5 |
TN |
472 |
Intake Air Temperature Sensor Signal |
I |
LSA |
| C |
0.5 |
YE |
492 |
Mass Air Flow Sensor Signal |
I |
LSA |
| D |
0.8 |
PK/BK |
5294 |
Powertrain Main Relay Fused Supply (5) |
I |
LSA |
| E |
0.8 |
BK |
1550 |
Ground |
I |
LSA |
