X130 Engine Harness to Charge Air Cooler (CAC) Coolant Pump (LSA)
|
|
|

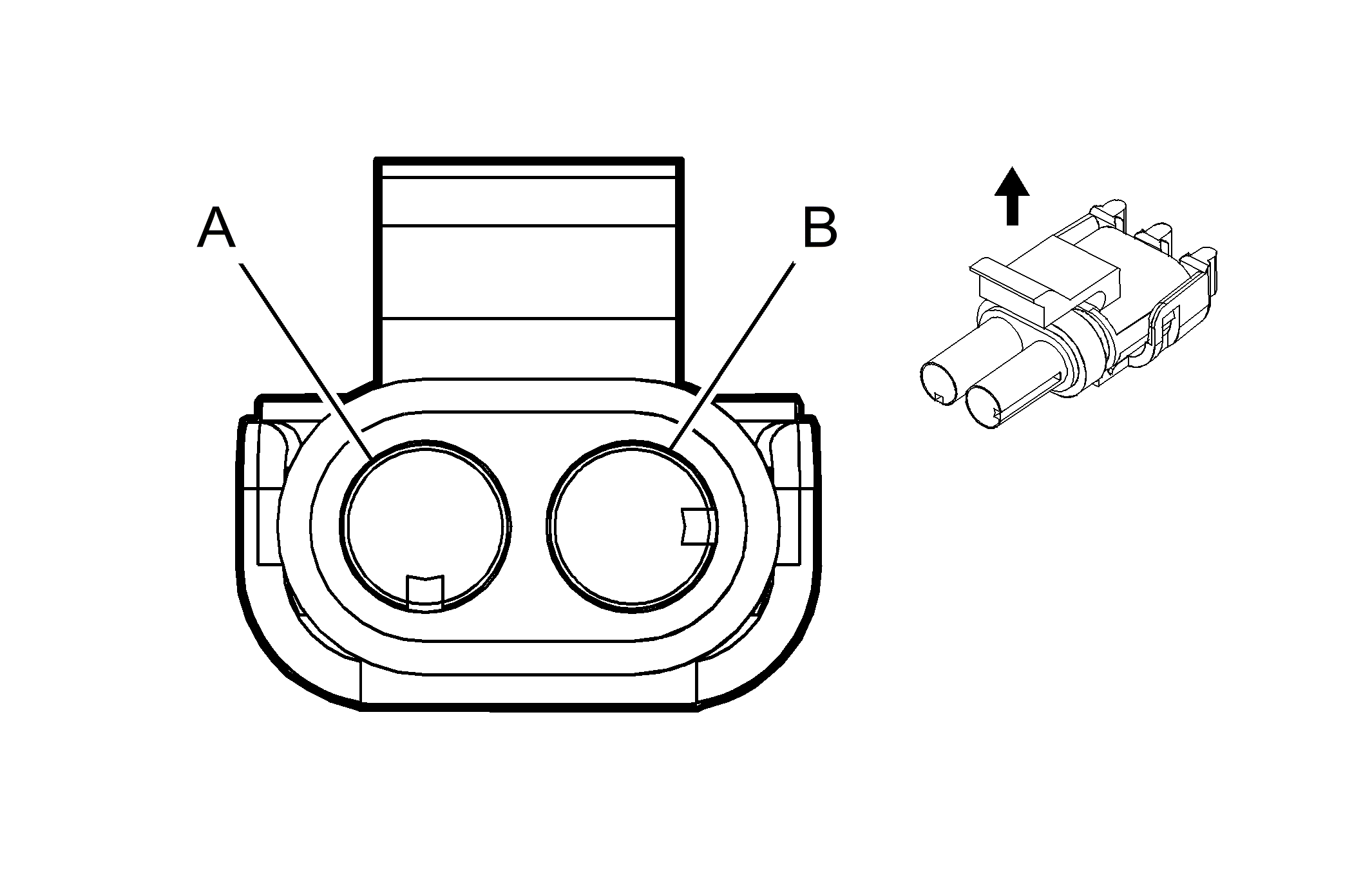

Connector Part Information
- Harness Type: Engine
- OEM Connector: 12103784
- Service Connector: 12117368
- Description: 2-Way F Sealed (BK)
|
Connector Part Information
- Harness Type: Coolant Pump
- OEM Connector: 12034074
- Service Connector: 13577793
- Description: 2-Way M Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-8 (OG) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
J-35616-9 (OG) |
J-38125-10A |
12089040 |
3 |
E |
5 |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| A |
0.5 |
TN |
2022 |
I |
- |
Charge Air Cooler Coolant Pump Supply Voltage |
A |
0.5 |
TN |
2022 |
II |
- |
| B |
0.8 |
BK |
1550 |
I |
- |
Ground |
B |
0.5 |
BK |
1550 |
II |
- |
