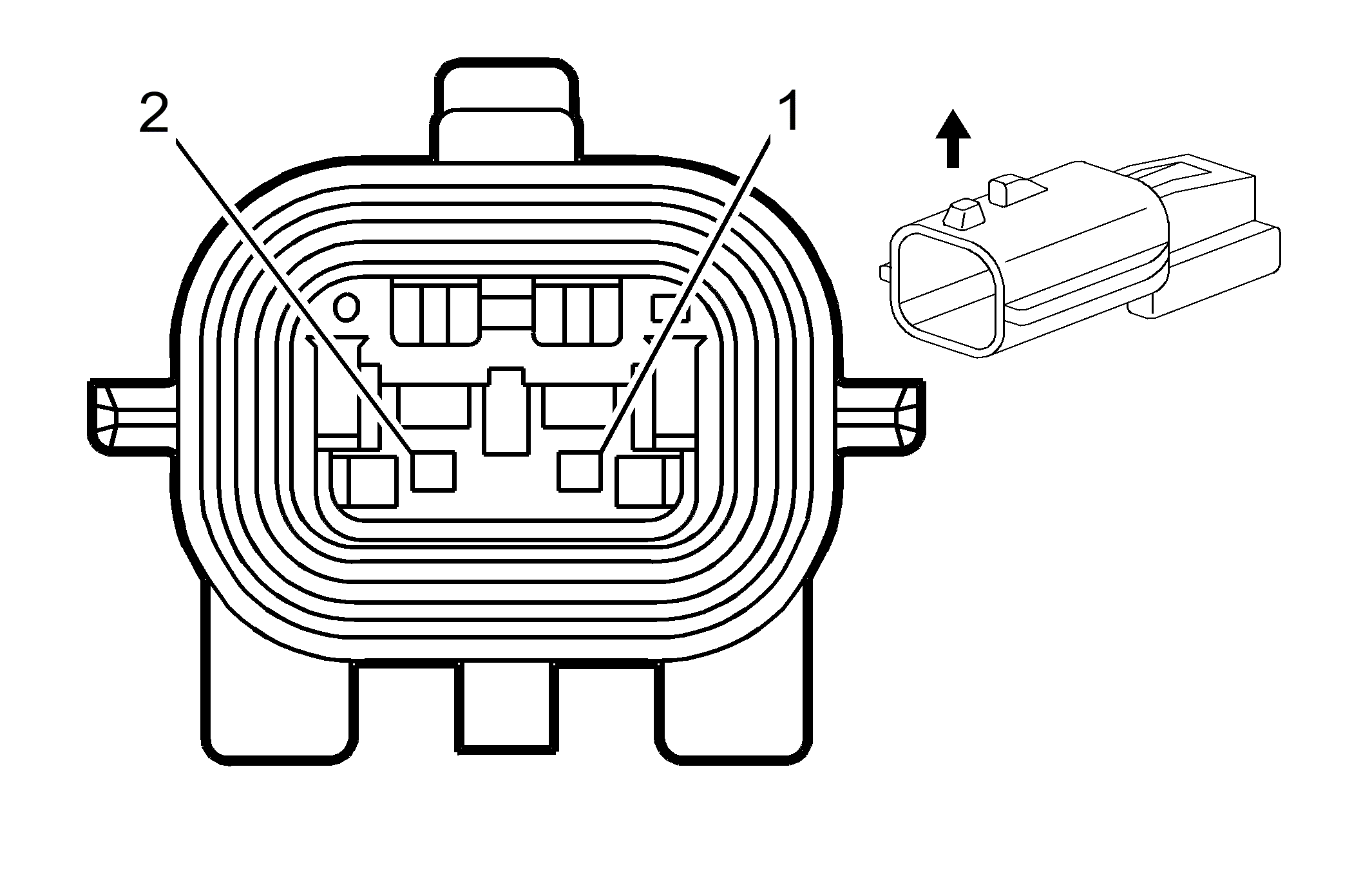

B27LR Door Handle Switch - Left Rear Exterior (ATH)
|
|
Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 7282-8851-30
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 064 RH Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-2A (GY) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
350 |
Ground |
I |
- |
| 2 |
0.35 |
BN |
6157 |
Easy Keyless Entry Unlock Signal |
I |
- |
