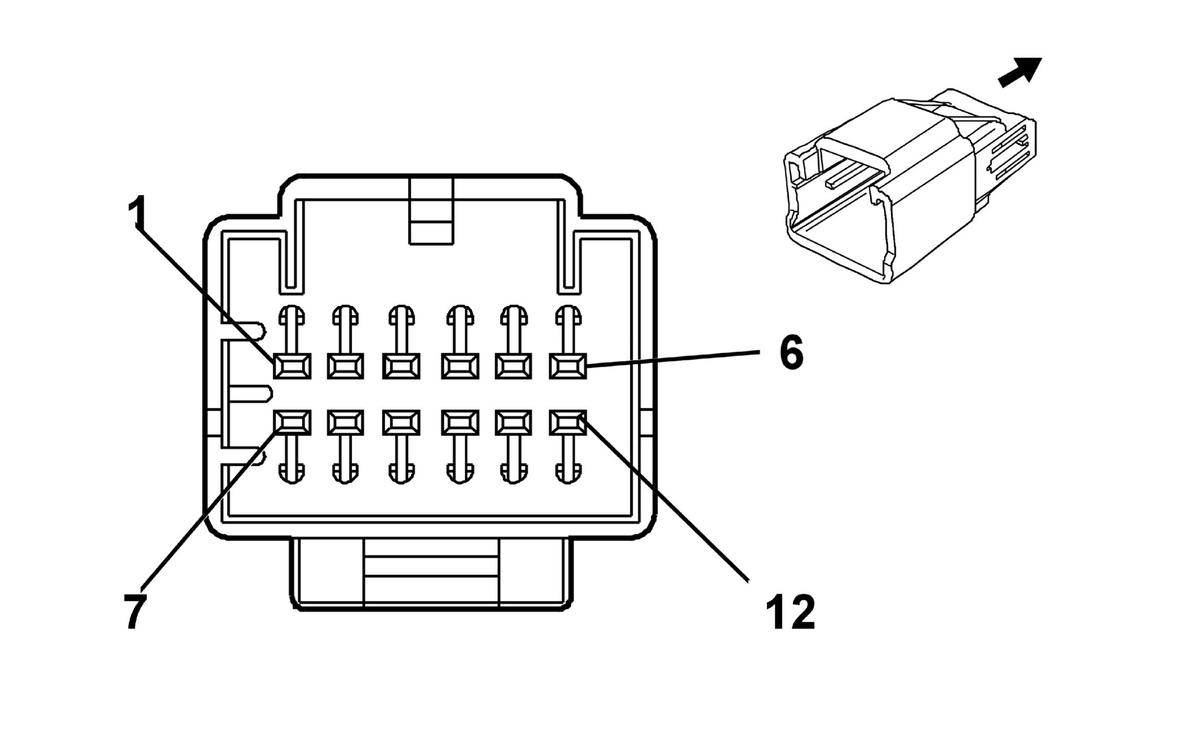

A9A Outside Rearview Mirror - Driver
|
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 7282-7696-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way M (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-65B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
D-BU/WH |
6160 |
Outside Left Mirror Vertical Position Control |
I |
- |
| 2 |
0.35 |
WH |
7197 |
Outside Left Mirror Drive Motor Common |
I |
- |
| 3 |
0.35 |
D-GN/WH |
6159 |
Outside Left Mirror Horizontal Position Control |
I |
- |
| 4 |
0.35 |
YE |
190 |
Left Folding Mirror Motor Extend Control |
I |
- |
| 5 |
0.35 |
L-BU |
191 |
Left Folding Mirror Motor Retract Control |
I |
- |
| 6 |
0.8 |
BK |
350 |
Ground |
I |
- |
| 7 |
0.8 |
WH |
606 |
Left Mirror Heating Element Supply Voltage |
I |
- |
| 8 |
0.35 |
PK |
5853 |
Driver Side Object Detection LED Signal (1) |
I |
- |
| 9 |
0.35 |
D-BU |
672 |
Left Outside Rear View Mirror Position Sensor 5 Volt Reference |
I |
- |
| 10 |
0.35 |
D-GN |
784 |
Left Mirror Vertical Position Sensor Signal |
I |
- |
| 11 |
0.35 |
GY |
786 |
Left Mirror Horizontal Position Sensor Signal |
I |
- |
| 12 |
0.35 |
BN |
673 |
Left Outside Rear View Mirror Position Sensor Low Reference |
I |
- |
