A11 Radio X9
|
|

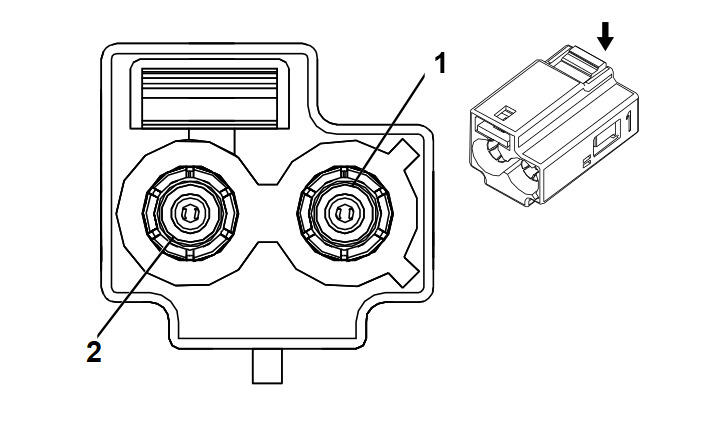

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 3FA1NKSJ
- Service Connector: Not Available
- Description: 2-Way F Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
COAX |
- |
Coaxial Antenna XM Signal |
I |
- |
| 2 |
- |
COAX |
- |
Coaxial Antenna XM Drain Wire |
I |
- |
