Driver or Passenger Seat Cushion Air Pump Replacement (W2E)

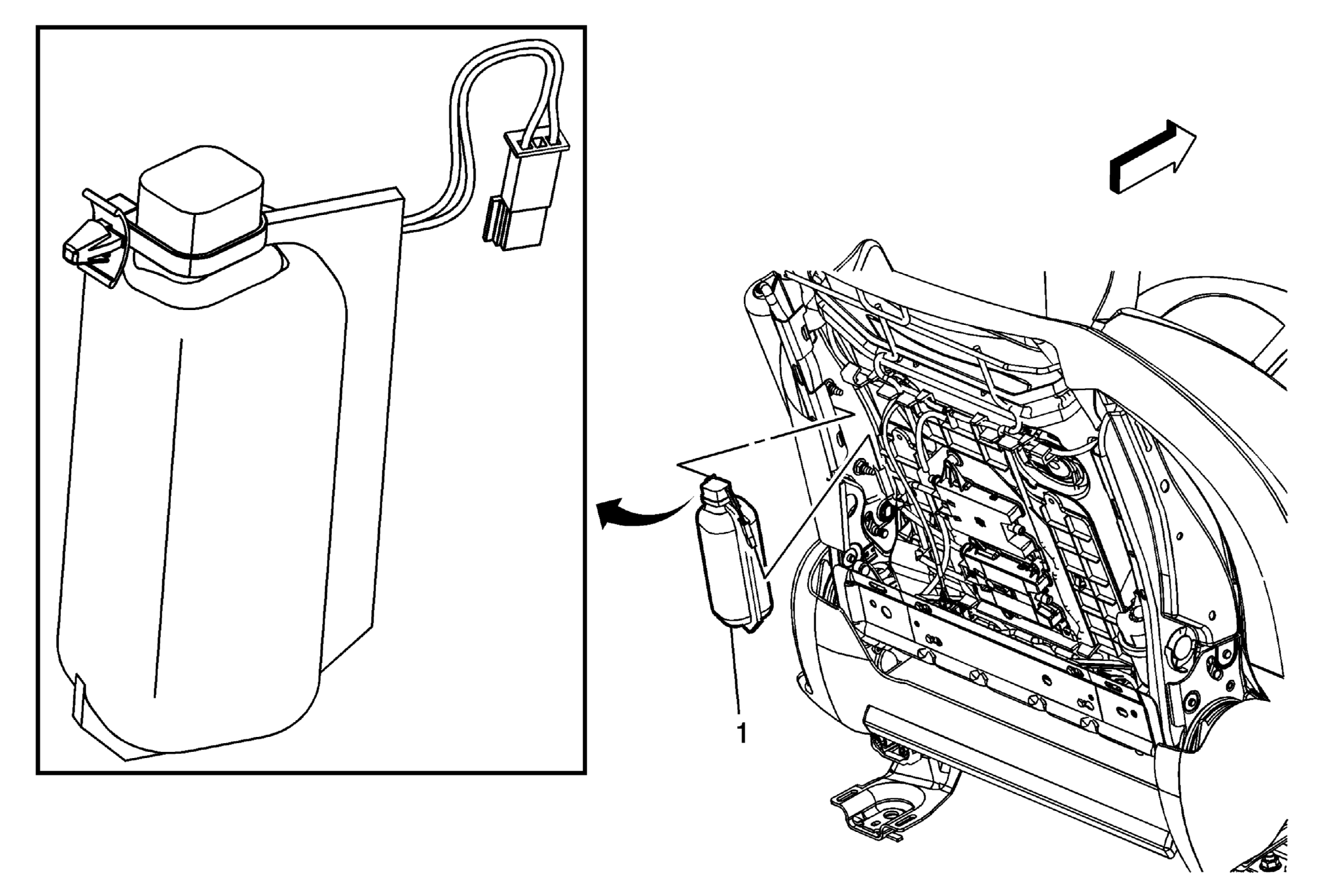

Fig 1: Identifying Driver Or Passenger Seat Cushion Air Pump (W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement (W2E) .
1	Driver Seat and Passenger Seat Cushion Air Pump Procedure Disconnect electrical connectors as needed. Disconnect air pump hose from lumbar support bladder control valve. Remove the seat cushion air pump.

Callout

Component Name

Preliminary Procedure
Remove the front seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement (W2E) .

Driver Seat and Passenger Seat Cushion Air Pump

Procedure
