Rear Compartment Side Trim Panel Replacement (Coupe)

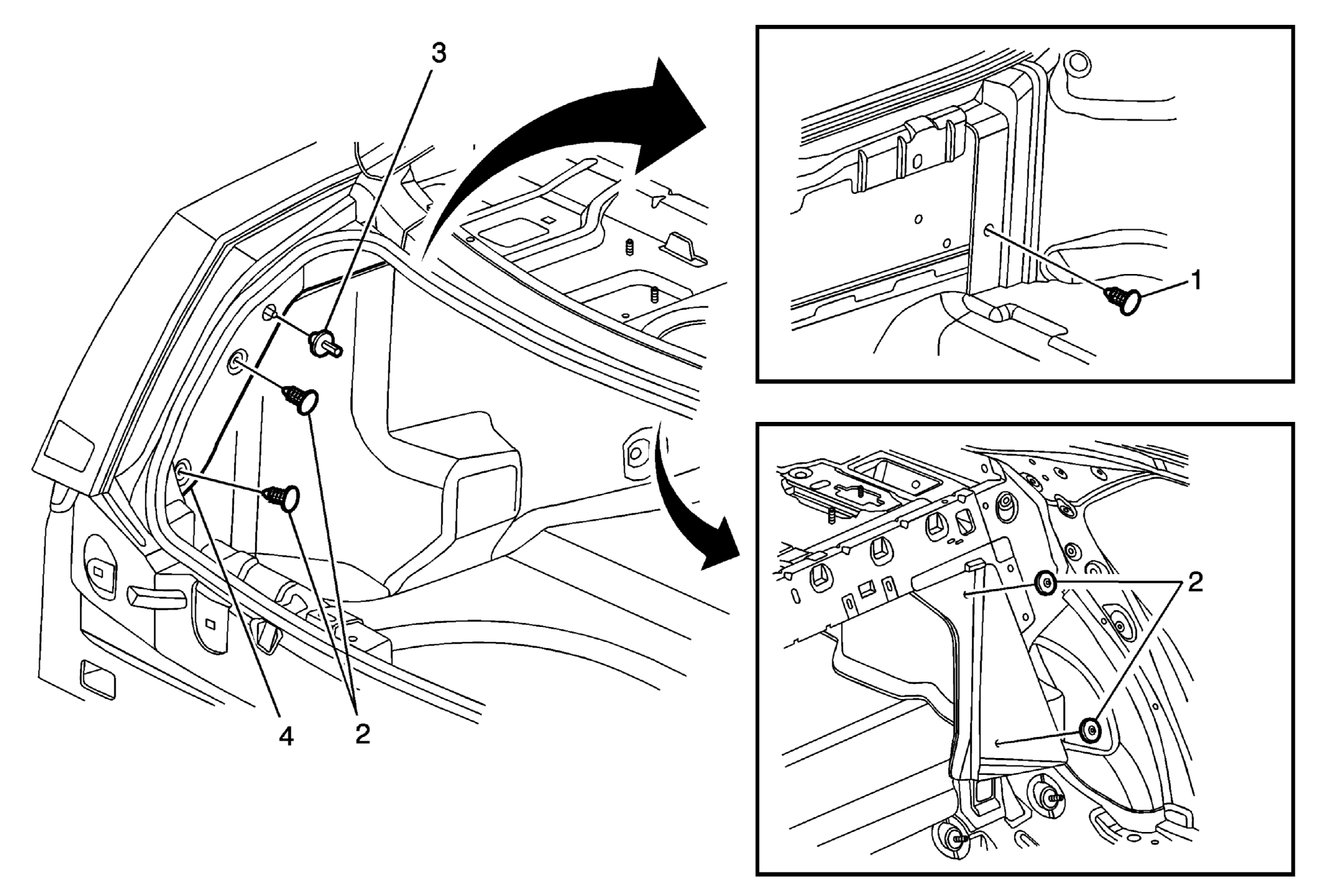

Fig 1: Rear Compartment Side Trim Panel Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Rear Compartment Side Trim Retainer TIP:  Remove the retainer, if equipped.
2	Rear Compartment Side Trim Retainer (Qty: 4) TIP:  Fold down rear seat to access retainers.
3	Cargo Net Retainer
4	Rear Compartment Side Trim
