Rocker Panel Molding Replacement (Coupe)

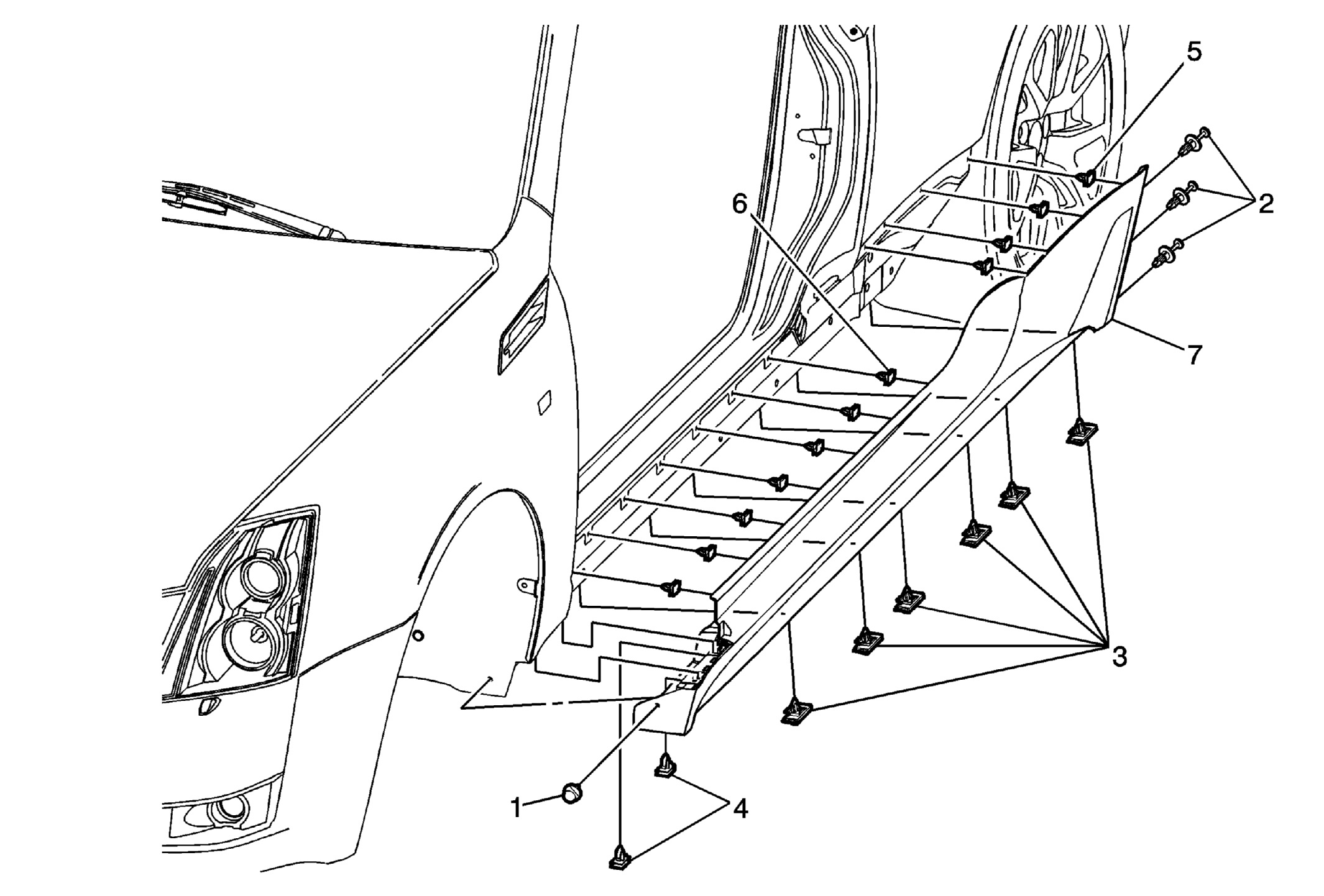

Fig 1: Rocker Panel Molding & Retainers (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front and rear wheelhouse rocker molding push-pin retainers. Begin releasing the lower rocker panel molding retainers first. Release the upper rocker panel molding retainers last.
1	Front Wheelhouse Panel Push-pin Retainer
2	Rear Wheelhouse Panel Front Push-pin Retainer (Qty: 3)
3	Rocker Panel Molding Lower Retainer (Qty: 6)
4	Front Fender Lower Retainer (Qty: 2)
5	Body Side Rear Lower Retainer (Qty 4)
6	Front Side Door Sil Retainer (Qty 7)
7	Rocker Panel Molding Assembly
