Front Bumper Impact Bar Extension Replacement

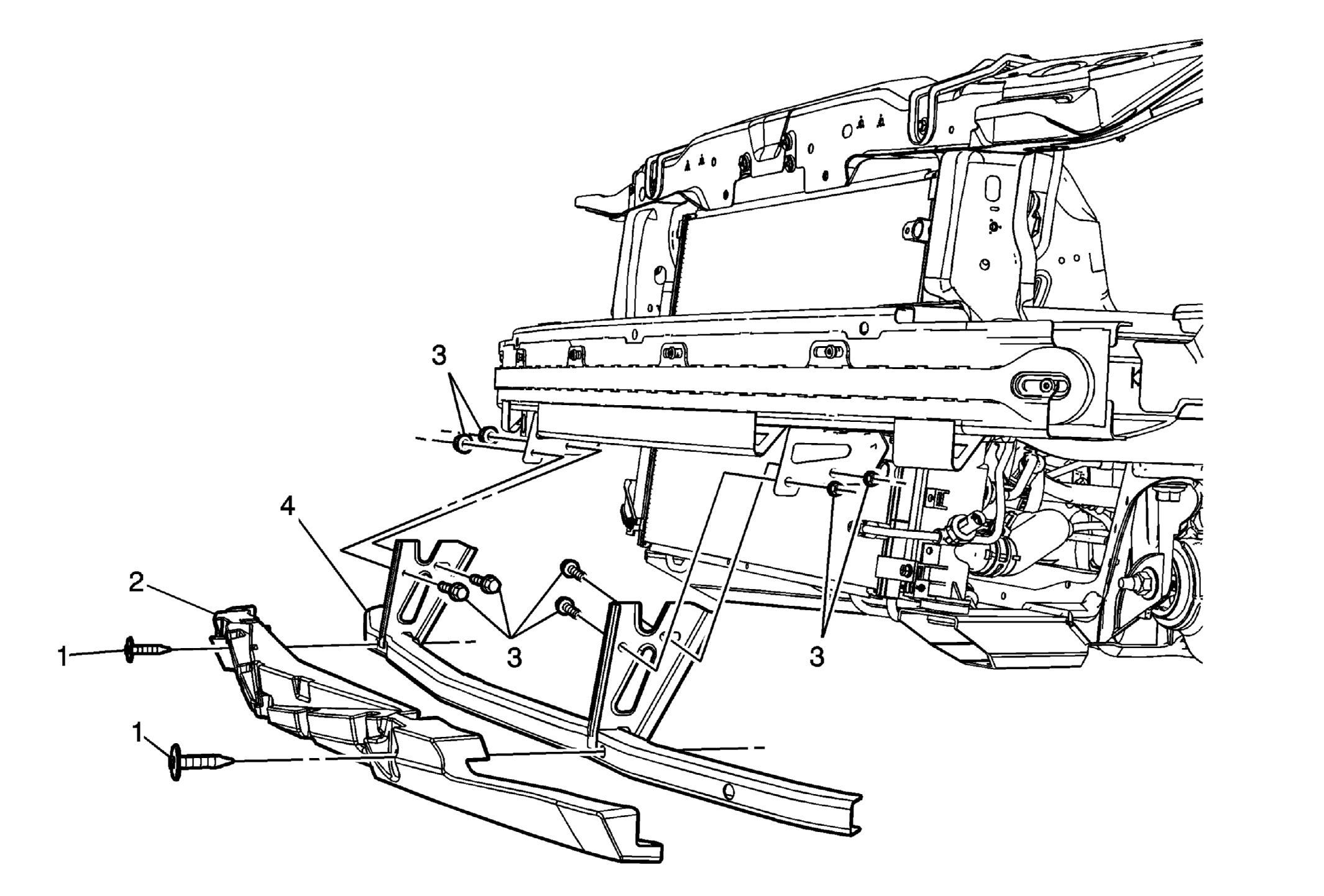

Fig 1: Identifying Front Bumper Impact Bar Extension

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Impact Bar Extension Absorber Retainer (Qty: 2)
2	Front Bumper Impact Bar Extension Absorber
3	Front Bumper Impact Bar Extension Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  20 N.m (15 lb ft)
4	Front Bumper Impact Bar Extension
