Front Bumper Fascia Energy Absorber Replacement (Standard)

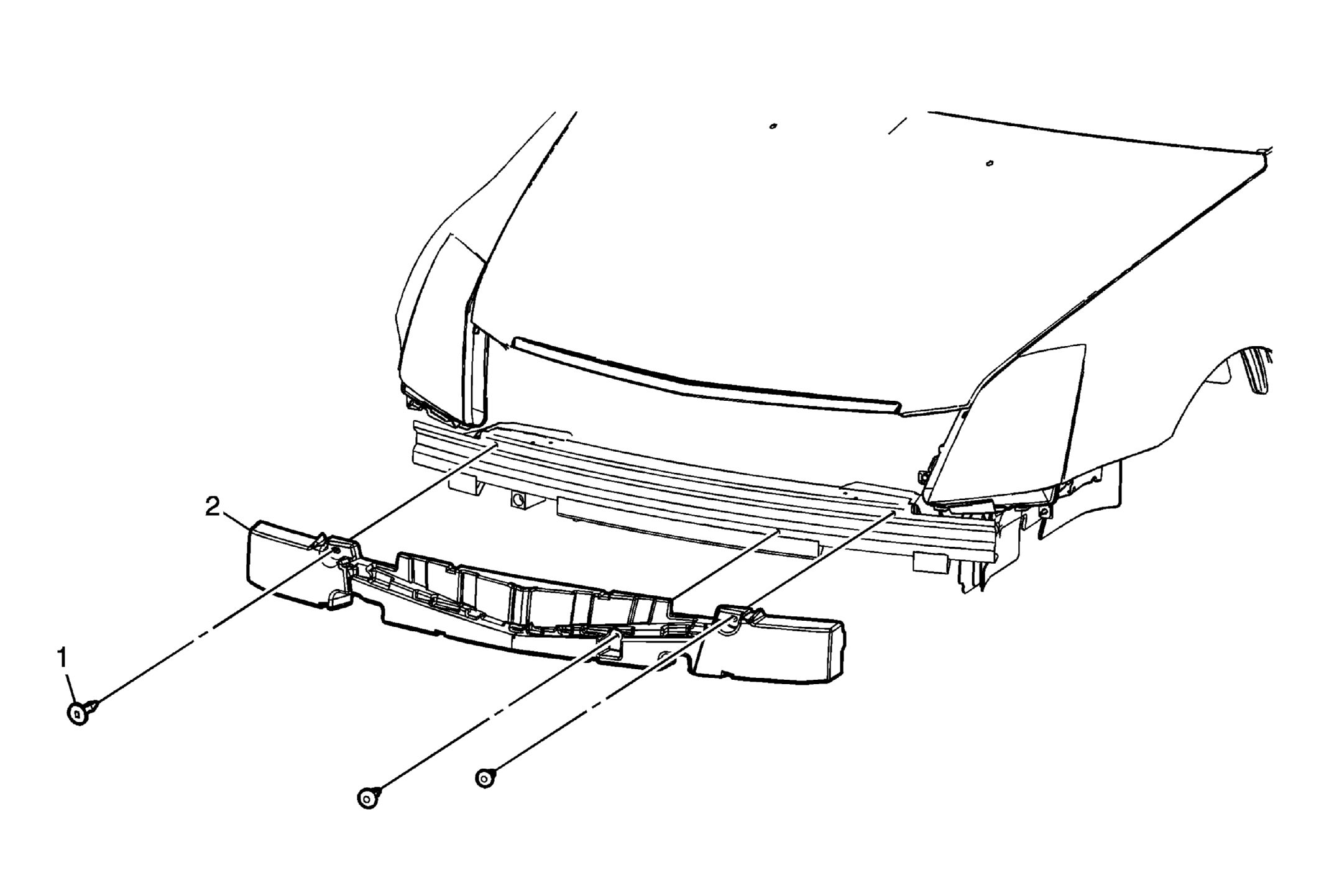

Fig 1: Identifying Front Bumper Fascia Energy Absorber (Standard)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Energy Absorber Push Pin (Qty: 3)
2	Front Bumper Fascia Energy Absorber
