Front Air Deflector Replacement

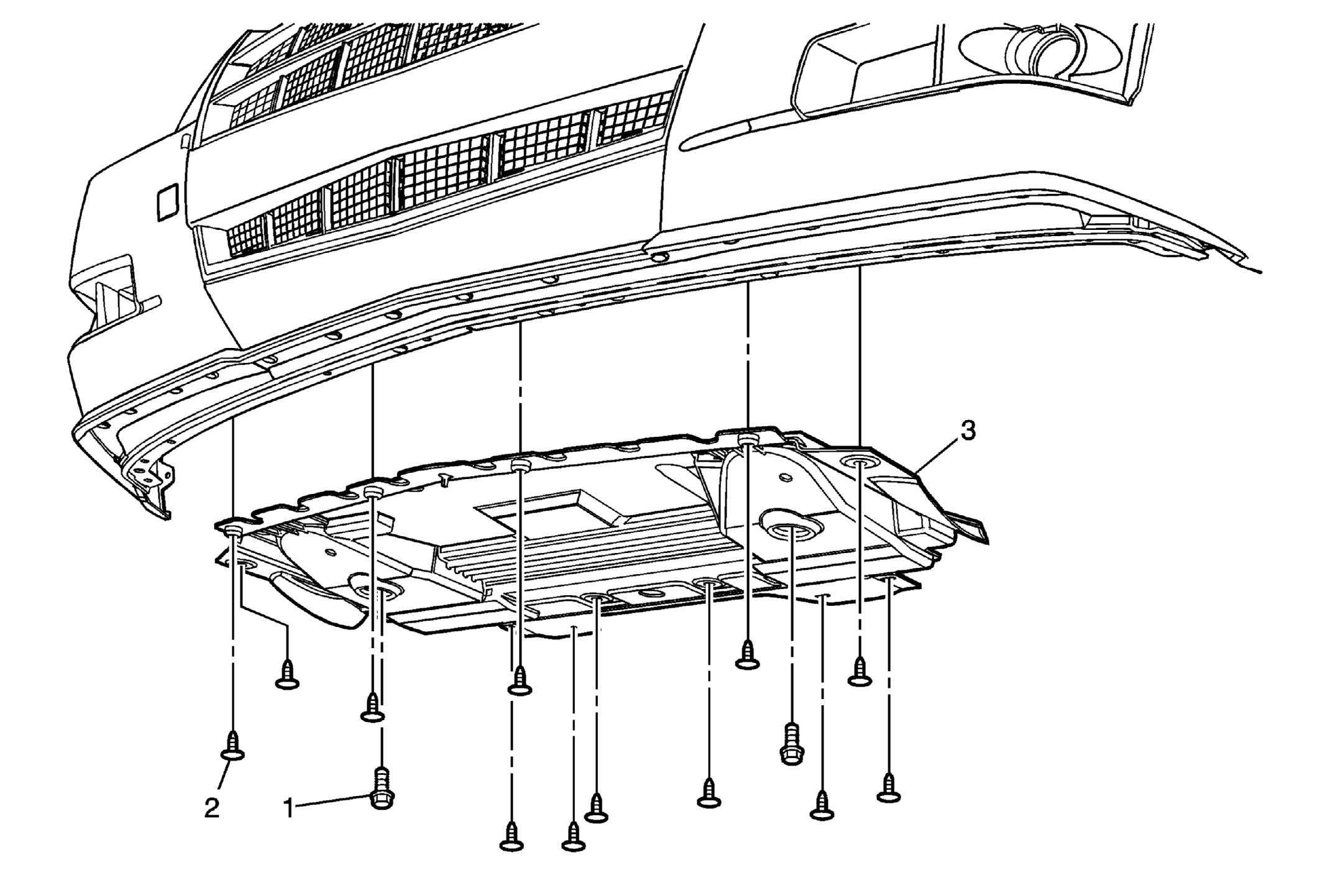

Fig 1: Identifying Front Air Deflector
GM2197697Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Front Air Deflector Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Air Deflector Push Pin (Qty: 10)
3 Front Air Deflector
