Rear Seat Cushion Compartment Replacement (Coupe)

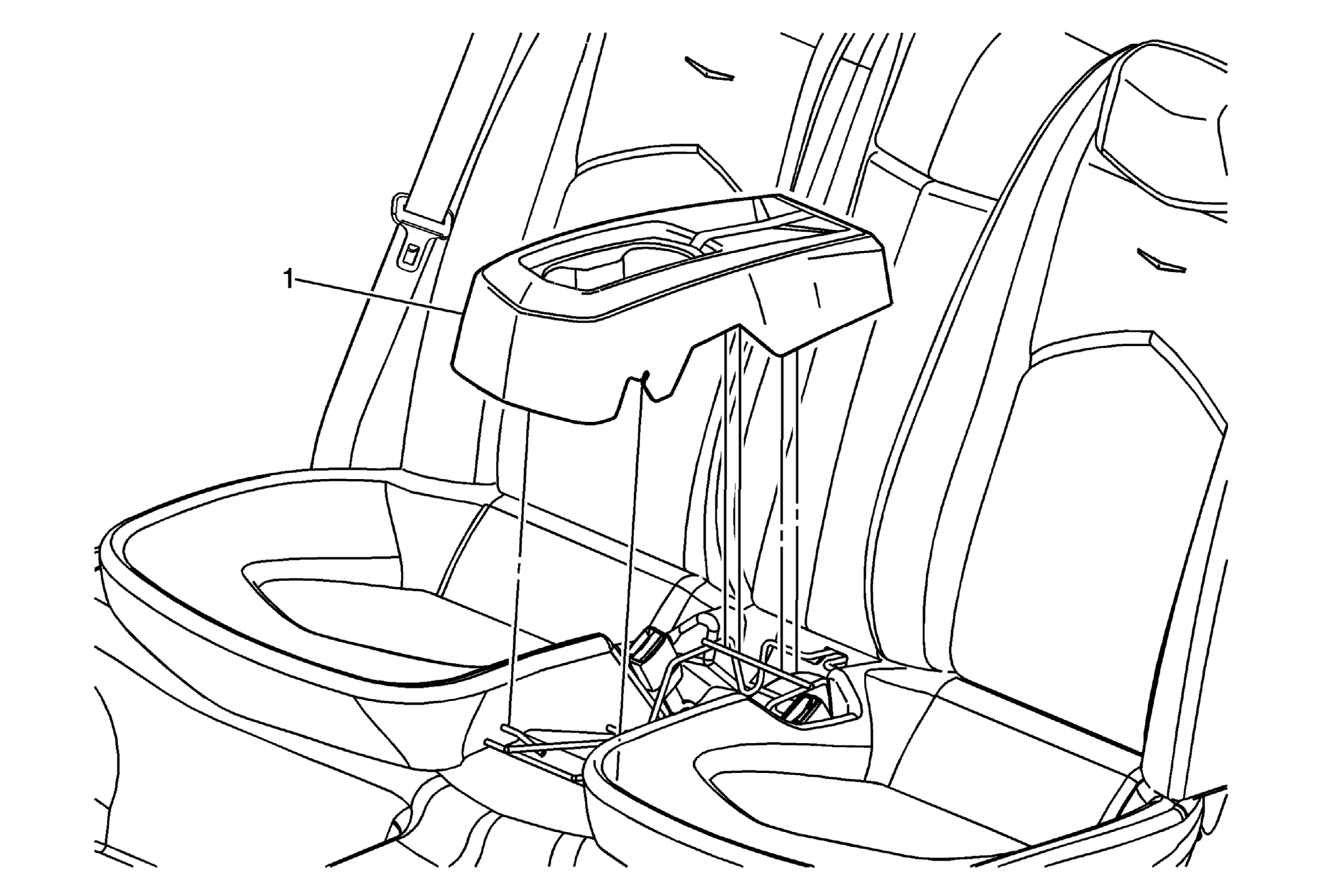

Fig 1: Rear Seat Cushion Compartment (Coupe)
GM2353297Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Cushion Compartment

Procedure

  1. Release the rear seat center seat belts.
  2. Gently pull up on the rear of the compartment assembly to disengage it from the cushion frame wire.
  3. Gently pull up on the front of the compartment assembly to disengage it from the cushion frame wire and remove it from the vehicle.
