Front Seat Back Recliner Handle Replacement

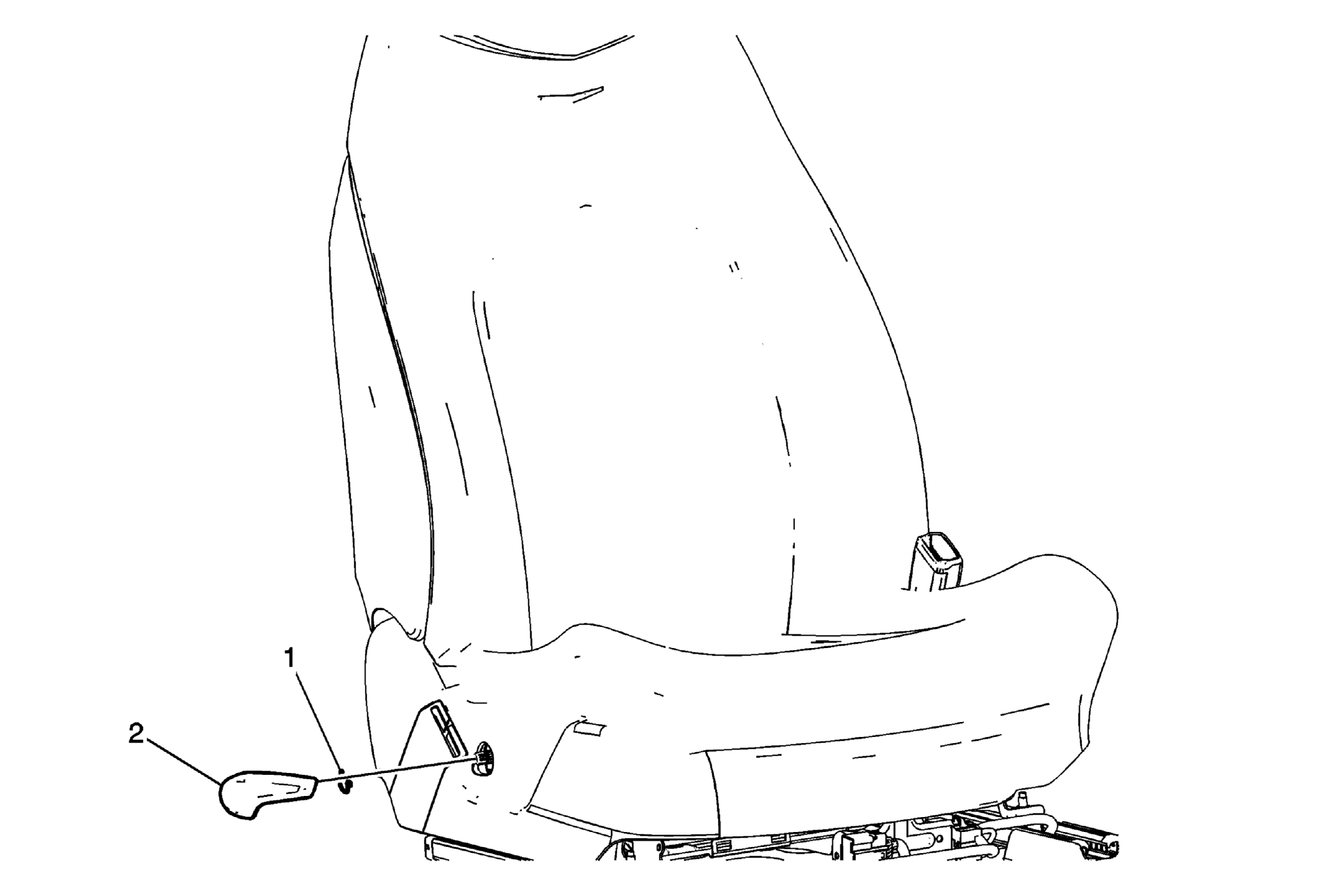

Fig 1: Driver Seat and Passenger Seat Recliner Handle
GM1970738Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Recliner Handle Retainer Clip
TIP:  Using a flat-bladed tool, push the retainer clip rearward and pull outward to release the handle.
2 Front Seat Recliner Handle
