Front Seat Adjuster Track Finish Cover Replacement (AQ9)

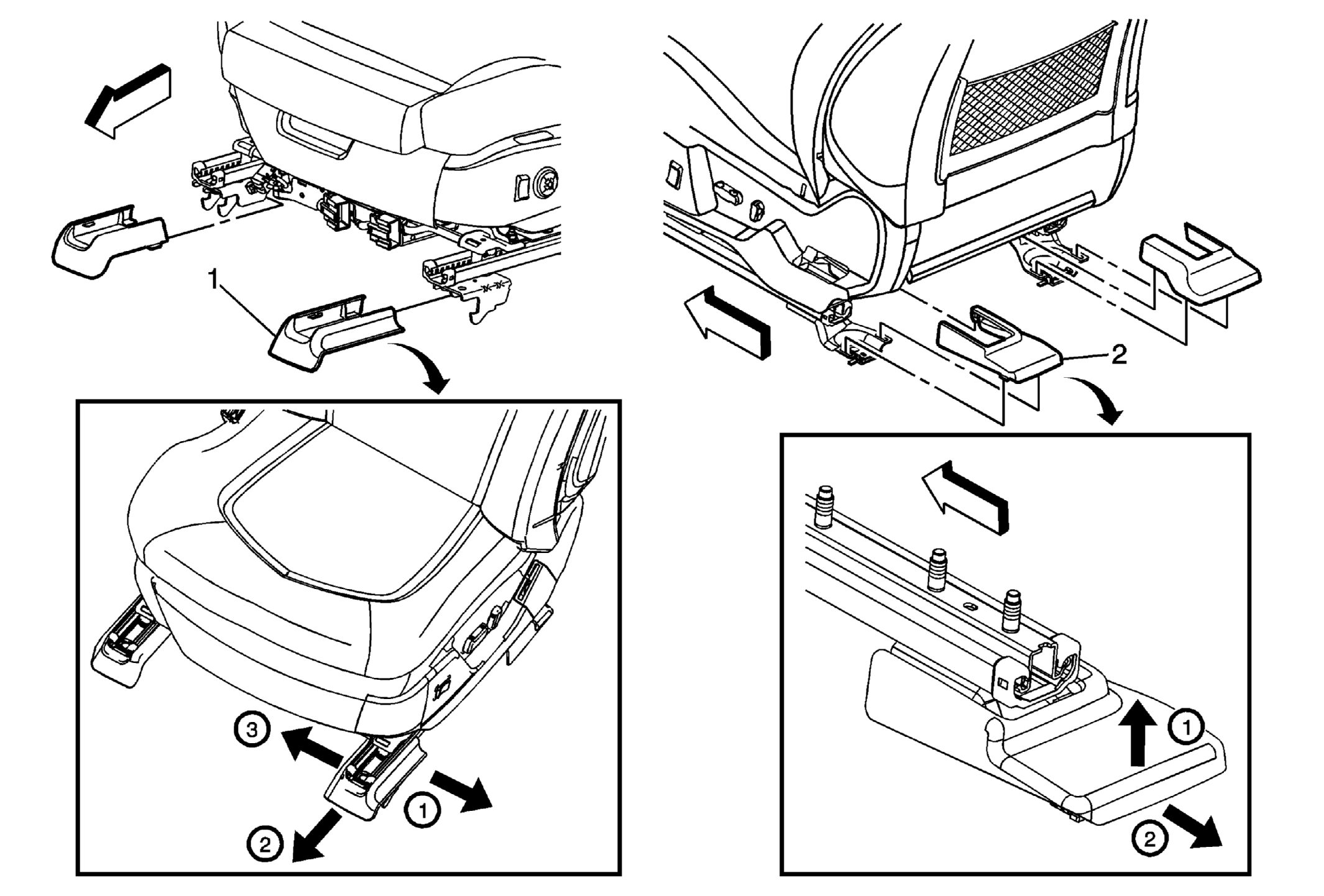

Fig 1: Front Seat Adjuster Track Finish Covers (AQ9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Inner Adjuster Track Front Finish Cover Procedure Disengage the outboard side of the cover by pulling it outward, flexing the cover tab away from the adjuster hook. When the tab is clear of the hook, pull the front of the cover up and forward to release it from the front of the adjuster rail. After the front tab comes free, then disengage the hook on the inboard side of the cover. TIP: Use the same method to remove the opposite side.
2	Front Seat Inner Adjuster Track Front Rear Cover Procedure Disengage the two rear cover clips by prying the cover upward from the rear of the cover. When the clips are free from the adjuster track, pull the cover rearward to disengage the hook from the adjuster lower bracket. TIP: Use the same method to remove the opposite side.

Callout

Component Name

Front Seat Inner Adjuster Track Front Finish Cover

Procedure

Disengage the outboard side of the cover by pulling it outward, flexing the cover tab away from the adjuster hook.
When the tab is clear of the hook, pull the front of the cover up and forward to release it from the front of the adjuster rail.
After the front tab comes free, then disengage the hook on the inboard side of the cover.

TIP: Use the same method to remove the opposite side.

Front Seat Inner Adjuster Track Front Rear Cover

Procedure

Disengage the two rear cover clips by prying the cover upward from the rear of the cover.
When the clips are free from the adjuster track, pull the cover rearward to disengage the hook from the adjuster lower bracket.

TIP: Use the same method to remove the opposite side.
