Front Seat Adjuster Switch Bezel Replacement (AQ9)

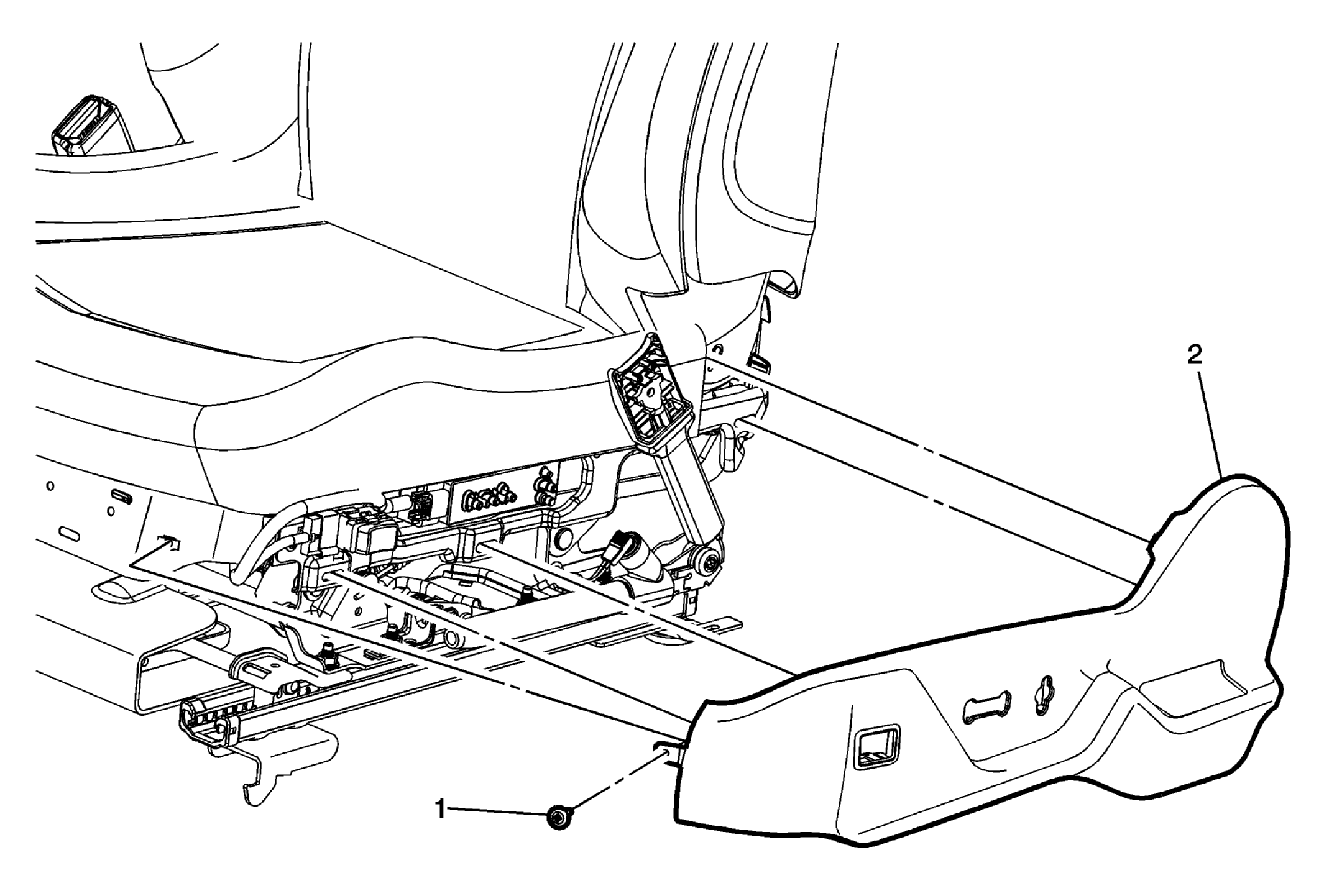

Fig 1: Driver or Passenger Seat Adjuster Switch Bezel (AQ9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the seat belt from the pretensioner. Refer to Seat Belt Retractor Pretensioner Replacement - Front (AQ9) Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (AQ9) Remove the front seat outer adjuster front finish cover. Refer to Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement (AQ9)
1	Front Seat Adjuster Switch Bezel Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Seat Adjuster Switch Bezel Procedure Disconnect the electrical connectors. Remove the adjuster switch bezel by pulling outward near the retainer clip locations. If replacing the bezel, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Switch Bezel Screw (Qty: 1)

CAUTION:

Tighten
2 N.m (18 lb in)

Front Seat Adjuster Switch Bezel

Procedure

Disconnect the electrical connectors.
Remove the adjuster switch bezel by pulling outward near the retainer clip locations.
If replacing the bezel, transfer components as necessary.
