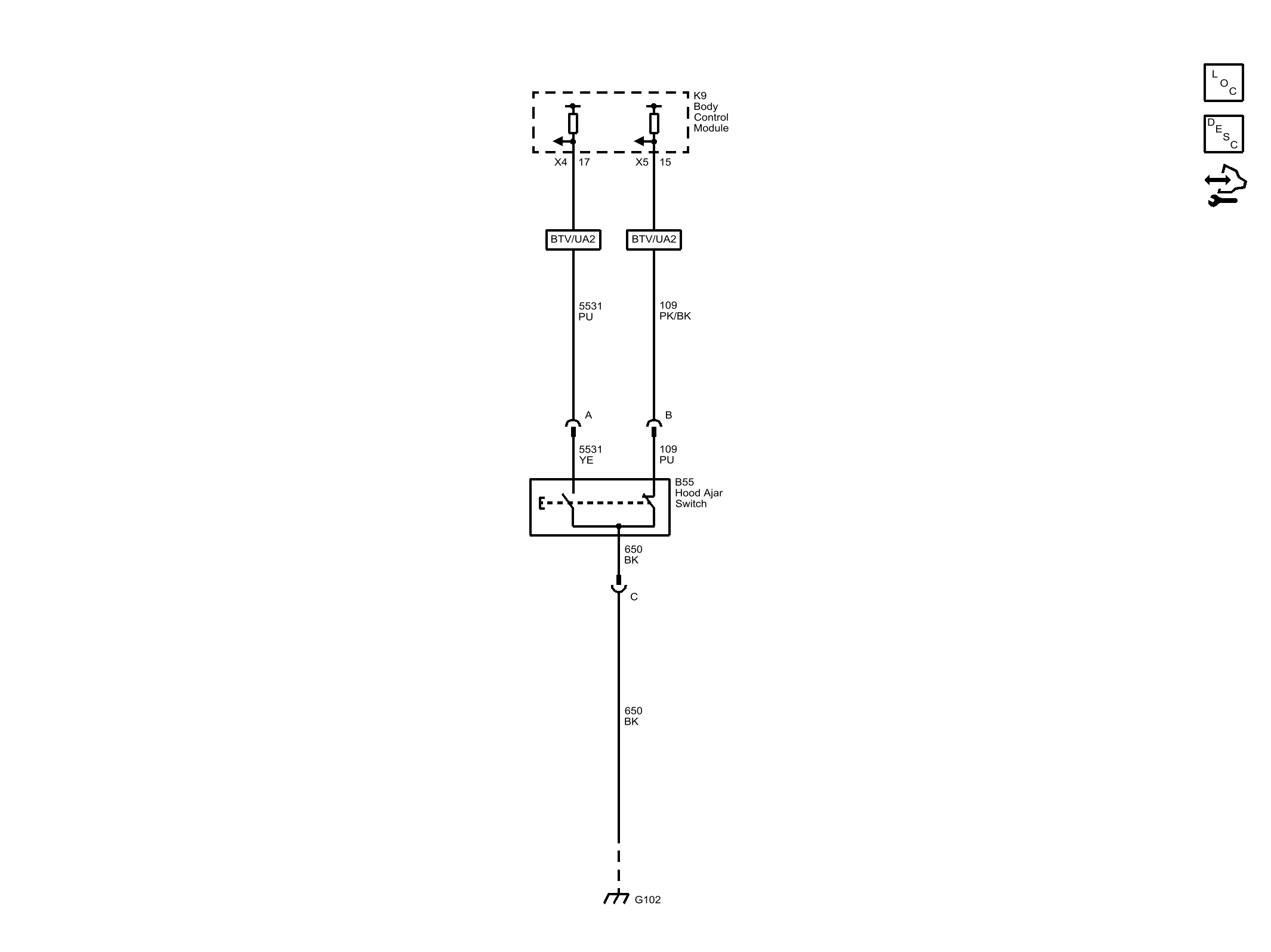

Home >> Cadillac >> 2015 >> CTS V, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures (Coupe) >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch
