Rear Compartment Lid Hinge Torque Rod Replacement

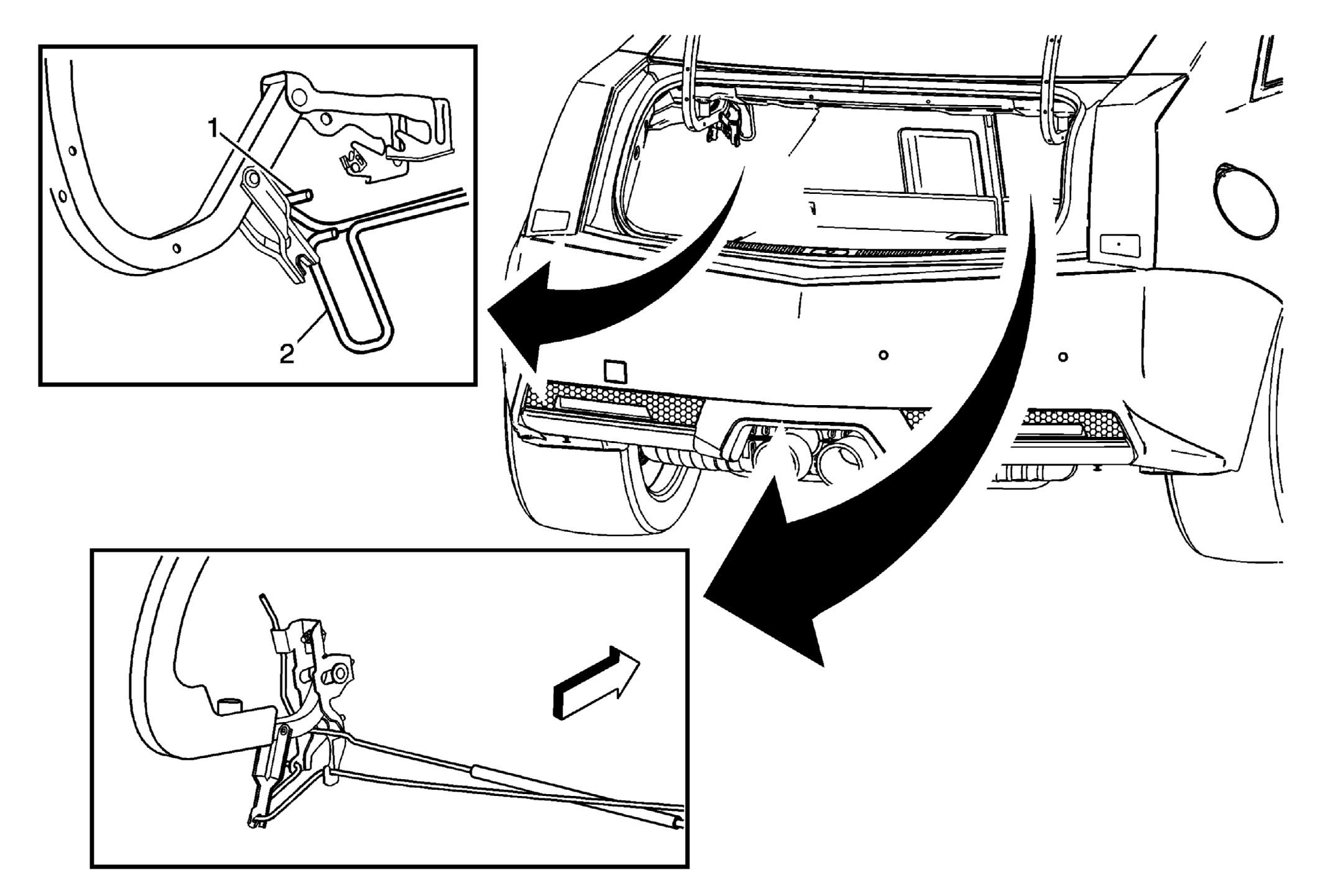

Fig 1: Rear Compartment Lid Hinge Torque Rods

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hood Hold-Open Device Warning . Preliminary Procedure Open and support the rear compartment lid.Special Tools BO-125  Torque Rod LifterFor equivalent regional tools, refer to Special Tools .
1	Rear Compartment Lid Hinge Torque Rod - Right Side TIP:  Only use the special tool to remove and install the rear compartment lid hinge torque rod.
2	Rear Compartment Lid Hinge Torque Rod - Left Side TIP:  Only use the special tool to remove and install the rear compartment lid hinge torque rod.
