Rear Compartment Lid Hinge Replacement (Coupe)

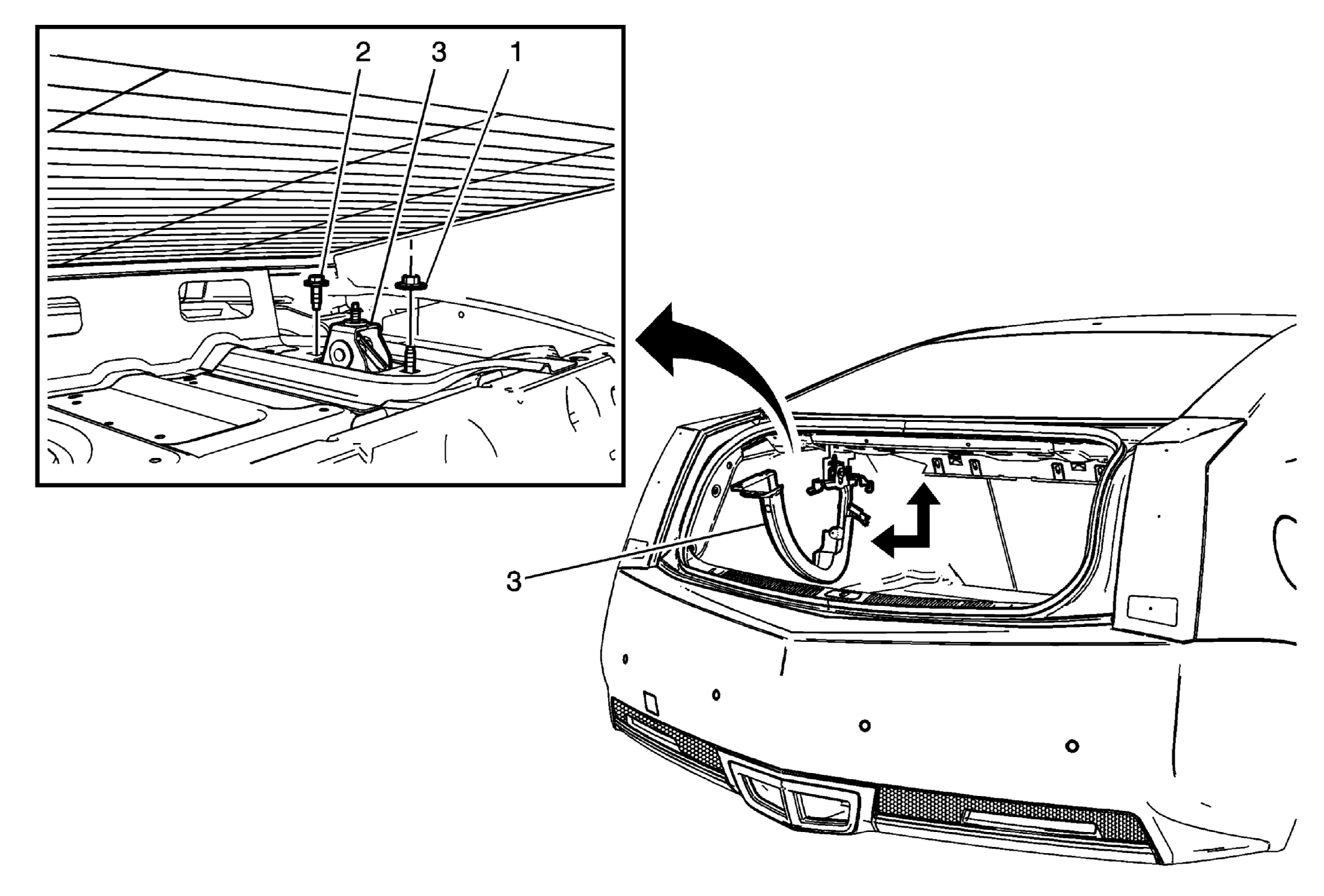

Fig 1: Rear Compartment Lid Hinge, Bolt & Nut (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Coupe) . Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement (Coupe) . Disconnect the rear compartment lid hinge torque rods. Refer to Rear Compartment Lid Hinge Torque Rod Replacement .
1	Rear Compartment Lid Hinge Nut CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Compartment Lid Hinge Bolt Tighten 10 N.m (89 lb in)
3	Rear Compartment Lid Hinge Procedures Transfer parts as needed. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment .
