Fuel Tank Filler Pipe Housing Replacement

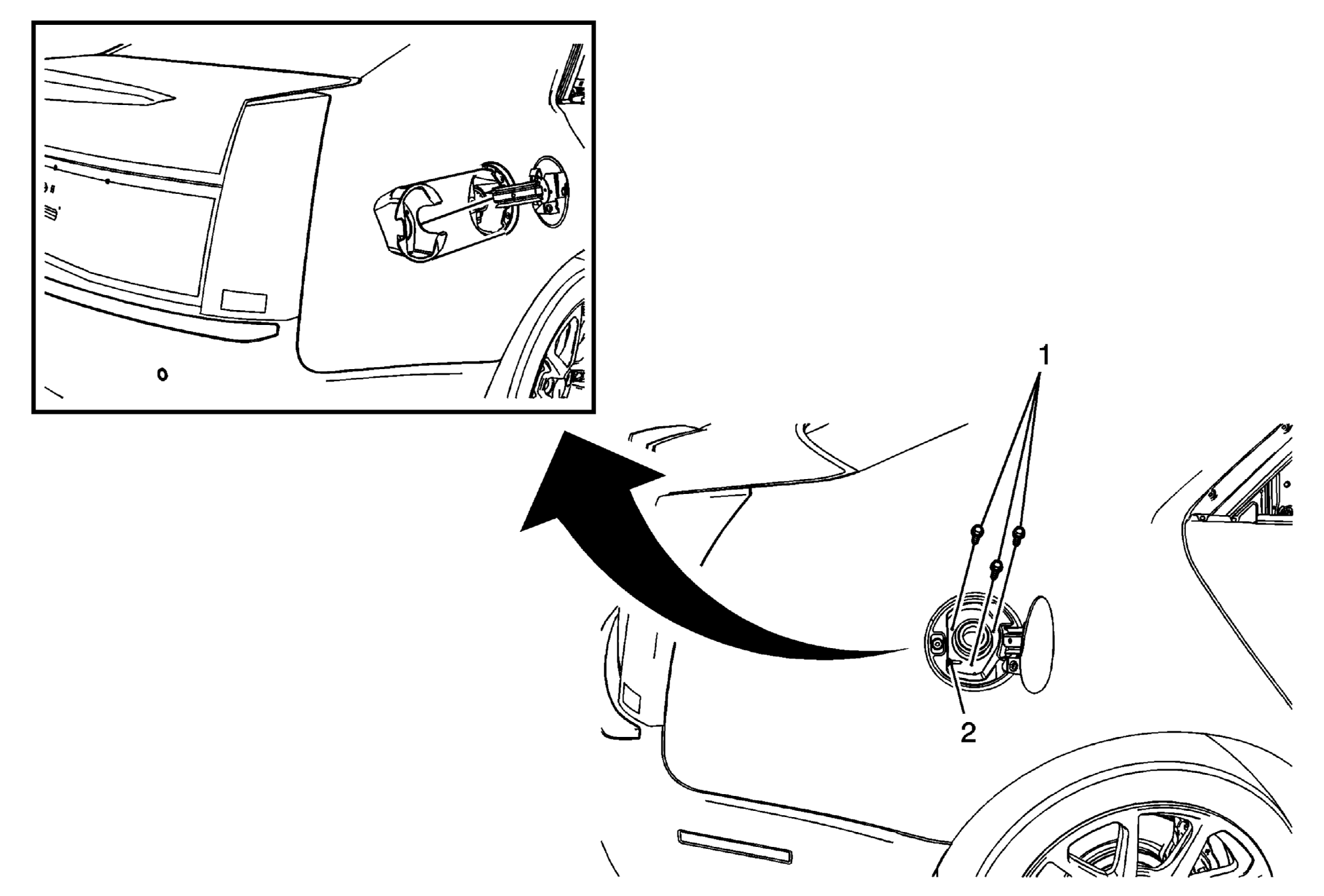

Fig 1: Fuel Tank Filler Pipe Housing
GM2356926Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Filler Door Pocket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the fuel filler cap.
  2. Remove the nut from the actuator, if equipped.

Tighten
10 N.m (89 lb in)
2 Fuel Filler Door Pocket
