Front Side Door Weatherstrip Replacement - Body Side (Coupe)

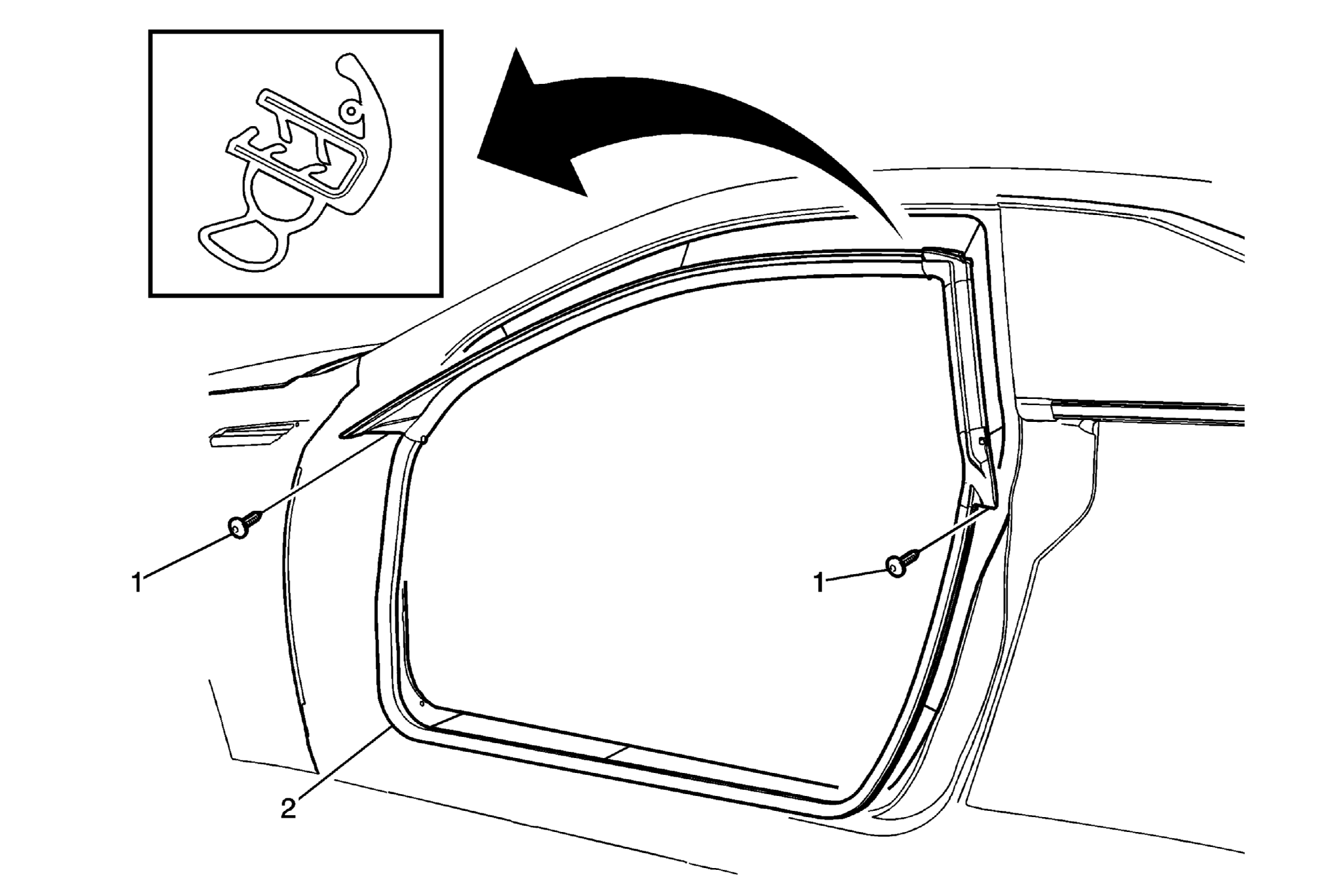

Fig 1: Front Side Door Weatherstrip & Retainers (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel side trim. Refer to Instrument Panel Side Trim Panel Replacement Remove the front carpet retainer. Refer to Front Side Door Sill Trim Plate Replacement (Coupe)
1	Front Side Door Weatherstrip Retainers (Qty: 2) Procedure One push pin is located in each corner of the door weatherstrip
2	Front Side Door Weatherstrip Procedure When installing the weatherstrip start in the right upper corner working counter clockwise around the door ring.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel side trim. Refer to Instrument Panel Side Trim Panel Replacement
Remove the front carpet retainer. Refer to Front Side Door Sill Trim Plate Replacement (Coupe)

Front Side Door Weatherstrip Retainers (Qty: 2)
Procedure
One push pin is located in each corner of the door weatherstrip

Front Side Door Weatherstrip
Procedure
When installing the weatherstrip start in the right upper corner working counter clockwise around the door ring.
